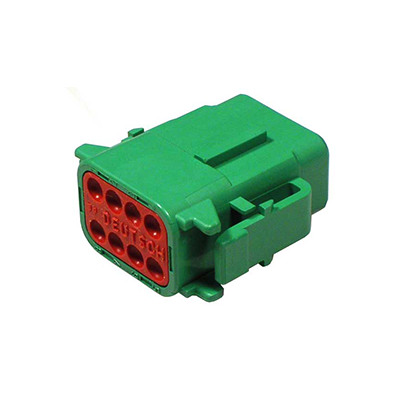

DTM Series, Connector, Plug, 8 Circuit, C Key

Deutsch, Female Plug Connector, C Key, DTM Series, Plastic, Green, 8 Socket Plug | 5C-DTM06-08SCManufacturer:  TE ConnectivityManufacturer Part Number:   DTM06-08SCProduct Category:  DTM SeriesProduct Type:  Connector, PlugSpecial Product Attribute:   C KeyConnector Color:  GreenTerminal Assignment:   SocketsTerminal Sizes:  Size 20Cavities:  8Modification:  NoneE-Seal:  NoMating Connector:   DTM Series, Connector, Receptacle, 8 Circuit, C KeyRequired Parts: Deutsch, Terminal-Contact, Sockets, Size 20DTM Series, Wedgelock, For Pins, 8 CircuitDescriptionProduct AttributeManufacturerTE ConnectivityLength30.1 mmWidth15.24 mmHeight31.62 mmApplicationWire to WireAttachment Hole Diameter1 mmColorBlackConnectorsAutomotive ConnectorsContact GenderWithout Socket ContactsCurrent Rating7.5 ADimensions15.24 mm x 31.62 mm x 30.1 mmGenderPlug (Male)Housing MaterialPolyamide (PA)Ingress ProtectionIP68, IP6K9KLocking MechanismIntegrated in HousingMaterialPlasticMating Part NumberDTM04-08PCMaximum Operating Temperature 125 CMinimum Operating Temperature- 55 CMounting AngleStraightMounting StyleCable Mount / Free HangingNumber of Positions8 PositionNumber of Rows2 RowPackagingEachPitch4.19 mmProductConnectorsProduct TypeAutomotive ConnectorsSealed / UnsealedSealedSeriesDTMTermination StyleCrimpTradenameDTType8-WayVoltage Rating250 VWire Gauge Max16 AWGWire Gauge Min22 AWGWire Gauge Range16 AWG to 20 AWGPart # AliasesZPF000000000130402 [integrate_google_drive data=”eyJ0eXBlIjoibWVkaWEiLCJzaG93RmlsZXMiOnRydWUsInNob3dGb2xkZXJzIjp0cnVlLCJtb2R1bGVXaWR0aCI6IjEwMCUiLCJtb2R1bGVIZWlnaHQiOiJhdXRvIiwiZ2FsbGVyeUhlaWdodCI6MzAwLCJzaG93SGVhZGVyIjp0cnVlLCJzaG93QnJlYWRjcnVtYnMiOnRydWUsImFsbG93RW1iZWRQb3BvdXQiOnRydWUsImVtYmVkVHlwZSI6InJlYWRPbmx5Iiwic2hvd1JlZnJlc2giOnRydWUsIm9wZW5lZFBsYXlsaXN0Ijp0cnVlLCJzaG93TG9vcCI6dHJ1ZSwic2hvd1NodWZmbGUiOnRydWUsInNob3dGdWxsc2NyZWVuIjp0cnVlLCJuZXh0UHJldmlvdXMiOnRydWUsInZvbHVtZUJ1dHRvbiI6dHJ1ZSwiZ2xvYmFsU2VhcmNoIjp0cnVlLCJ2aWV3IjoibGlzdCIsIm9wZW5OZXdUYWIiOnRydWUsInNvcnQiOnsic29ydEJ5IjoibmFtZSIsInNvcnREaXJlY3Rpb24iOiJhc2MifSwicHJldmlldyI6dHJ1ZSwiYWxsb3dQcmV2aWV3UG9wb3V0Ijp0cnVlLCJkb3dubG9hZCI6dHJ1ZSwiemlwRG93bmxvYWQiOnRydWUsImRpc3BsYXlGb3IiOiJldmVyeW9uZSIsImRpc3BsYXlVc2VycyI6WyJldmVyeW9uZSJdLCJkaXNwbGF5RXhjZXB0IjpbXSwiZm9sZGVycyI6W3siaWQiOiIxd0FLNU9Ba3BuYkdreUs3WXVwd3JFSE1MM0o0WVB5WTAiLCJuYW1lIjoiREVVVFNDSCBEVCBTZXJpZXMgQ29ubmVjdG9yIEluc3RydWN0aW9ucy5tcDQiLCJ0eXBlIjoidmlkZW8vbXA0Iiwic2l6ZSI6IjI1NTAwODI3IiwiaWNvbkxpbmsiOiJodHRwczovL2RyaXZlLXRoaXJkcGFydHkuZ29vZ2xldXNlcmNvbnRlbnQuY29tLzE2L3R5cGUvdmlkZW8vbXA0IiwidGh1bWJuYWlsTGluayI6Imh0dHBzOi8vbGg0Lmdvb2dsZXVzZXJjb250ZW50LmNvbS9MNGxTNmh3a2JMTExoZFVSaGJlSi1YWWltZ2pVSVlsQ2tEX0h2ekdSa2N0ZG8wZmZ0LWNtdWJLdjVvcENoQU1pSnFYNjZBN1AxakF4U3JVPXMyMjAiLCJ3ZWJWaWV3TGluayI6Imh0dHBzOi8vZHJpdmUuZ29vZ2xlLmNvbS9maWxlL2QvMXdBSzVPQWtwbmJHa3lLN1l1cHdyRUhNTDNKNFlQeVkwL3ZpZXc/dXNwPWRyaXZlc2RrIiwid2ViQ29udGVudExpbmsiOiJodHRwczovL2RyaXZlLmdvb2dsZS5jb20vdWM/aWQ9MXdBSzVPQWtwbmJHa3lLN1l1cHdyRUhNTDNKNFlQeVkwJmV4cG9ydD1kb3dubG9hZCIsImNyZWF0ZWQiOiIyMDIzLTAxLTI2VDIwOjQ0OjIyLjU5MVoiLCJ1cGRhdGVkIjoiMjAyMy0wMS0wM1QyMzozODo1Ni4zMTVaIiwiZGVzY3JpcHRpb24iOm51bGwsInBhcmVudHMiOlsiMXpqOHoxVFNCQVJKck4zSjRnMXdweUhqeTlSRzNxNG5xIl0sInNoYXJlZCI6dHJ1ZSwic2hhcmVkV2l0aE1lVGltZSI6bnVsbCwiZXh0ZW5zaW9uIjoibXA0IiwicmVzb3VyY2VLZXkiOm51bGwsImNvcHlSZXF1aXJlc1dyaXRlclBlcm1pc3Npb24iOmZhbHNlLCJzdGFycmVkIjpmYWxzZSwiZXhwb3J0TGlua3MiOm51bGwsImFjY291bnRJZCI6IjAwMTYyMDMxMTUxNDQzMjM0MDgxIiwicGVybWlzc2lvbnMiOnsiY2FuRWRpdCI6ZmFsc2UsImNhblByZXZpZXciOnRydWUsImNhbkRvd25sb2FkIjp0cnVlLCJjYW5EZWxldGUiOnRydWUsImNhblRyYXNoIjp0cnVlLCJjYW5Nb3ZlIjp0cnVlLCJjYW5SZW5hbWUiOnRydWUsImNhblNoYXJlIjp0cnVlLCJjb3B5UmVxdWlyZXNXcml0ZXJQZXJtaXNzaW9uIjpmYWxzZSwiY2FuQ2hhbmdlQ29weVJlcXVpcmVzV3JpdGVyUGVybWlzc2lvbiI6dHJ1ZSwidXNlcnMiOnsiMDM3OTQ5ODQ4OTgzOTA3MTM0ODlrIjp7InR5cGUiOiJkb21haW4iLCJyb2xlIjoid3JpdGVyIiwiZG9tYWluIjoiY3J1c2hpbmFnLmNvbSJ9LCIwMDE2MjAzMTE1MTQ0MzIzNDA4MSI6eyJ0eXBlIjoidXNlciIsInJvbGUiOiJvd25lciIsImRvbWFpbiI6bnVsbH19fSwib3duZXIiOiJIZWF0aCBDb25rbGluIiwiZXhwb3J0QXMiOltdLCJtZXRhRGF0YSI6eyJ3aWR0aCI6MTI4MCwiaGVpZ2h0Ijo3MjAsImR1cmF0aW9uIjoiMjU3MzIzIn19LHsiaWQiOiIxenY2OF9uM2d6cUFRcXh0TGhWVU5PaVdYLWwta2ZOWVMiLCJuYW1lIjoiREVVVFNDSCBDb250YWN0IENyaW1waW5nIEluc3RydWN0aW9ucy5tcDQiLCJ0eXBlIjoidmlkZW8vbXA0Iiwic2l6ZSI6IjQ1Mzg5MzgyIiwiaWNvbkxpbmsiOiJodHRwczovL2RyaXZlLXRoaXJkcGFydHkuZ29vZ2xldXNlcmNvbnRlbnQuY29tLzE2L3R5cGUvdmlkZW8vbXA0IiwidGh1bWJuYWlsTGluayI6Imh0dHBzOi8vbGgzLmdvb2dsZXVzZXJjb250ZW50LmNvbS9iQlhZclJLclJRM2xITi1mZ1ZJSzJ2NnhvSzZmSDdmbTI1R1hUQ3k5WnpXaVlRRGVoa05BamFwQ2VSOVJ4bFhYNGpXQzdXRVVFYnJXVTJ3PXMyMjAiLCJ3ZWJWaWV3TGluayI6Imh0dHBzOi8vZHJpdmUuZ29vZ2xlLmNvbS9maWxlL2QvMXp2NjhfbjNnenFBUXF4dExoVlVOT2lXWC1sLWtmTllTL3ZpZXc/dXNwPWRyaXZlc2RrIiwid2ViQ29udGVudExpbmsiOiJodHRwczovL2RyaXZlLmdvb2dsZS5jb20vdWM/aWQ9MXp2NjhfbjNnenFBUXF4dExoVlVOT2lXWC1sLWtmTllTJmV4cG9ydD1kb3dubG9hZCIsImNyZWF0ZWQiOiIyMDIzLTAxLTI2VDIwOjQ0OjIyLjMzNVoiLCJ1cGRhdGVkIjoiMjAyMy0wMS0wM1QyMzo0ODoxMy43MTZaIiwiZGVzY3JpcHRpb24iOm51bGwsInBhcmVudHMiOlsiMXpqOHoxVFNCQVJKck4zSjRnMXdweUhqeTlSRzNxNG5xIl0sInNoYXJlZCI6dHJ1ZSwic2hhcmVkV2l0aE1lVGltZSI6bnVsbCwiZXh0ZW5zaW9uIjoibXA0IiwicmVzb3VyY2VLZXkiOm51bGwsImNvcHlSZXF1aXJlc1dyaXRlclBlcm1pc3Npb24iOmZhbHNlLCJzdGFycmVkIjpmYWxzZSwiZXhwb3J0TGlua3MiOm51bGwsImFjY291bnRJZCI6IjAwMTYyMDMxMTUxNDQzMjM0MDgxIiwicGVybWlzc2lvbnMiOnsiY2FuRWRpdCI6ZmFsc2UsImNhblByZXZpZXciOnRydWUsImNhbkRvd25sb2FkIjp0cnVlLCJjYW5EZWxldGUiOnRydWUsImNhblRyYXNoIjp0cnVlLCJjYW5Nb3ZlIjp0cnVlLCJjYW5SZW5hbWUiOnRydWUsImNhblNoYXJlIjp0cnVlLCJjb3B5UmVxdWlyZXNXcml0ZXJQZXJtaXNzaW9uIjpmYWxzZSwiY2FuQ2hhbmdlQ29weVJlcXVpcmVzV3JpdGVyUGVybWlzc2lvbiI6dHJ1ZSwidXNlcnMiOnsiMDM3OTQ5ODQ4OTgzOTA3MTM0ODlrIjp7InR5cGUiOiJkb21haW4iLCJyb2xlIjoid3JpdGVyIiwiZG9tYWluIjoiY3J1c2hpbmFnLmNvbSJ9LCIwMDE2MjAzMTE1MTQ0MzIzNDA4MSI6eyJ0eXBlIjoidXNlciIsInJvbGUiOiJvd25lciIsImRvbWFpbiI6bnVsbH19fSwib3duZXIiOiJIZWF0aCBDb25rbGluIiwiZXhwb3J0QXMiOltdLCJtZXRhRGF0YSI6eyJ3aWR0aCI6MTI4MCwiaGVpZ2h0Ijo3MjAsImR1cmF0aW9uIjoiNDYwMDI2In19XX0=”]Deutsch DTM Series OverviewAccepts contact size 20 (7.5 amps)14-22 AWG (2.50-0.35 mm 2)2, 3, 4, 6, 8, and 12 cavity arrangementsIn-line, flange, or PCB mountRectangular, thermoplastic housingIntegrated latch for matingWedgelocks confirm contact alignment and retentionAvailable accessories: boots, mounting clips, dust caps, and backshellsDEUTSCH DTM housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 20 DEUTSCH contacts, each with 7.5-amp continuous capacity. DTM housings feature an integrated latch for mating.DTM SERIES OVERVIEWDEUTSCH DTM series connectors offer solutions to your smaller wire gauge applications. Building on the DT design strengths, the DTM connector line was developed to fill the need for lower amperage, multipin connectors. The DTM series offers the designer the ability to use multiple size 20 contacts, each with 7.5 amp continuous capacity, within a single shell.Special ModificationsThe DT series connectors offer several modifications to enhance the design flexibility and meet application specific needs. Options include enhanced seal retention, flanges, and connector body color just to mention a few. By combining the DT series connectors with the available modifications and accessories, the design possibilities are immense.DT Family OverviewDEUTSCH DT, DTM, and DTP series environmentally sealed connectors are designed for cable to cable and cable to board applications. The DT connectors are used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housings offer a wide operating temperature range and silicone rear wire and interface seals allow the connectors to withstand conditions of extreme  temperature and moisture.  The DEUTSCH DT series general purpose connectors will provide reliability and performance on the engine or  transmission, under the hood, on the chassis, or in the cab.DTM Family of Connectors Are A Great Choice For Harsh EnvironmentsDEUTSCH CONNECTOR PERFORMANCE SPECIFICATIONSTemperature: Operating at temperatures -55°C to 125°C  • DTMH series: -55°C to 150°C Durability: No electrical or mechanical defects after 100 cycles of engagement and disengagement. Vibration: No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes.  No electrical discontinuities longer than 1 microsecond. Fluid Resistance: Connectors show no damage when exposed to most fluids used in industrial applications. Insulation Resistance: 1000 megohms minimum at 25°C. Immersion: IP68 rating Moisture Resistance: Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage. Dielectric Withstanding Voltage: Current leakage less than 2 milliamps at 1500 volts AC. Thermal Cycle: No cracking, chipping or leaking after 20 test cycles from -55°C to 125°C.
