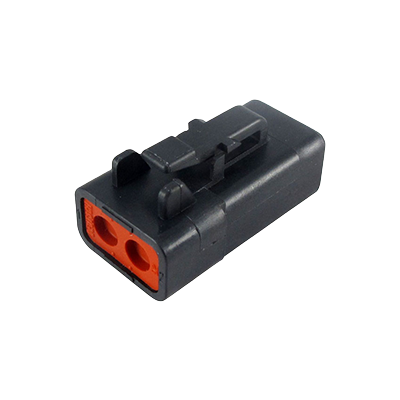

DTP Series, Connector, Plug, 2 Circuit

Manufacturer:  TE Connectivity, DeutschManufacturer Part Number: 5C-DTP06-2S-E004Product Category:  ConnectorProduct Type:  Plug/FemaleProduct Color:  BlackConnector Circuits:  2Product Attribute:  E-SealContact Size Required:  Size 12DescriptionProduct AttributeManufacturerTE ConnectivityLength34.65 mmWidth18.59 mmHeight18.06 mmApplicationWire to WireAttachment Hole Diameter2.5 mmColorBlackConnectorsAutomotive ConnectorsContact GenderWithout Socket ContactsCurrent Rating25 ADimensions18.59 mm x 18.06 mm x 34.65 mmGenderPlug (Male)Housing MaterialPolyamide (PA)Ingress ProtectionIP68InsulationInsulatedLocking MechanismIntegrated in HousingMaterialPlasticMating Part NumberDTP04-2PMaximum Operating Temperature 125 CMinimum Operating Temperature- 55 CMounting AngleStraightMounting StyleCable Mount / Free HangingNumber of Positions2 PositionNumber of Rows1 RowPackagingEachPitch6.71 mmProductConnectorsProduct TypeAutomotive ConnectorsSealed / UnsealedSealedSeriesDTPTermination StyleCrimpTradenameDTType2-WayVoltage Rating200 VWire Gauge Max10 AWGWire Gauge Min14 AWGWire Gauge Range10 AWG to 14 AWGPart # AliasesZPF000000000130152 DTP06-2S-E004-RU DEUTSCH DTP housings provide solutions for power applications.DEUTSCH DTP housings are available in 2 and 4 pin counts and use size 12 DEUTSCH contacts, each with 25-amp continuous capacity. DTP housings feature an integrated latch for mating.Technical Specifications:Mating Pin Diameter:2.39 mmCenterline (Pitch):6.71 mmSealable: YesHybrid Connector: NoOperating Temperature(Max): 125 °CProduct Overview:Accepts contact size 12 (25 amps)10-14 AWG (6.00-2.00 mm2)2 and 4 cavity arrangementsIn-line, flange, or PCB mountRectangular, thermoplastic housingIntegrated latch for matingWedgelocks confirm contact alignment and retentionAvailable accessories: boots, gaskets, mounting clipsLEARN MORE ABOUT THE DT SERIES, DTM SERIES, DTP SERIES CONNECTORS HERE:
