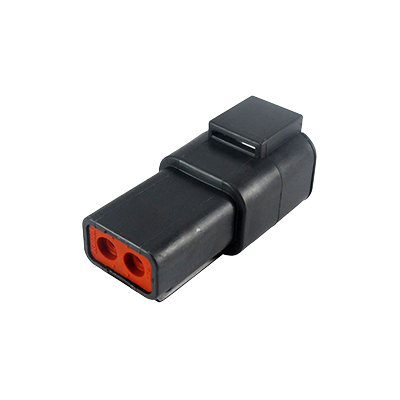

DTP Series, Connector, Receptacle, 2 Circuit

Manufacturer:  TE Connectivity, DeutschManufacturer Part Number: 5C-DTP04-2P-E004Product Category:  ConnectorProduct Type:  Receptacle/MaleProduct Color:  BlackConnector Circuits:  2Product Attribute:  E-SealContact Size Required:  Size 12DescriptionProduct AttributeManufacturerTE ConnectivityLength47.27 mmWidth22.15 mmHeight21.54 mmApplicationWire to WireAttachment Hole Diameter2.5 mmColorBlackConnectorsAutomotive ConnectorsContact GenderWithout Pin ContactsCurrent Rating25 ADimensions22.15 mm x 21.54 mm x 47.27 mmGenderReceptacle (Female)Housing MaterialPolyamide (PA)Ingress ProtectionIP68Locking MechanismIntegrated in HousingMaterialPlasticMaximum Operating Temperature 125 CMinimum Operating Temperature- 55 CMounting AngleStraightMounting StyleCable Mount / Free HangingNumber of Positions2 PositionNumber of Rows1 RowPackagingEachPitch6.71 mmProductConnectorsProduct TypeAutomotive ConnectorsSealed / UnsealedSealedSeriesDTPTermination StyleCrimpTradenameDTVoltage Rating200 VWire Gauge Max10 AWGWire Gauge Min14 AWGWire Gauge Range10 AWG to 14 AWGPart # AliasesZPF000000000130149 DEUTSCH DTP housings provide solutions for power applications.DEUTSCH DTP housings are available in 2 and 4 pin counts and use size 12 DEUTSCH contacts, each with 25-amp continuous capacity. DTP housings feature an integrated latch for mating.Technical Specifications:Mating Pin Diameter:2.39 mmCenterline (Pitch):6.71 mmSealable: YesHybrid Connector: NoOperating Temperature(Max): 125 °CProduct Overview:Accepts contact size 12 (25 amps)10-14 AWG (6.00-2.00 mm2)2 and 4 cavity arrangementsIn-line, flange, or PCB mountRectangular, thermoplastic housingIntegrated latch for matingWedgelocks confirm contact alignment and retentionAvailable accessories: boots, gaskets, mounting clipsLEARN MORE ABOUT THE DT SERIES, DTM SERIES, DTP SERIES CONNECTORS HERE:
