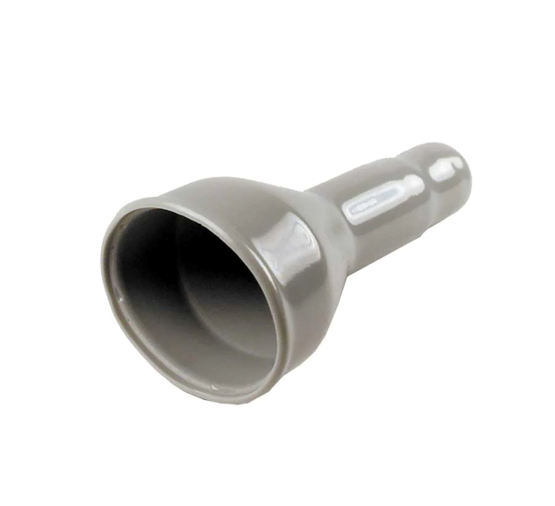

Deutsch, Connector Accessory, PVC Rear Sealing Boot, Gray; HD10 Series, 9 Contacts, Plastic, 180 Degree | 5C-HD10-9BTHD10 Series Connector Information:Manufacturer: TE ConnectivityManufacturer Part Number: HD10-9BTProduct Category: HD10 SeriesProduct Type: AccessorySpecial Product Attribute: Sealing BootConnector Color: GrayConnector Locking Type: NoneTerminal Assignment: Pins, SocketsTerminal Sizes: Size 16Cavities: 9Shell Size: 16DescriptionProduct AttributeManufacturerTE ConnectivityAccessory TypeBootConnectorsAutomotive ConnectorsMaterialPlastisolProductAccessoriesProduct TypeAutomotive Connectors Learn about our environmentally sealed DEUTSCH HD10 connectors that are heavily used for diagnostic connections in the trucking, agricultural, marine, mining, and construction industries. Watch this video for an overview of the connectors and for step-by-step instructions on inserting and removing contacts, as well as mating and unmating. [integrate_google_drive data=”eyJ0eXBlIjoibWVkaWEiLCJzaG93RmlsZXMiOnRydWUsInNob3dGb2xkZXJzIjp0cnVlLCJtb2R1bGVXaWR0aCI6IjEwMCUiLCJtb2R1bGVIZWlnaHQiOiJhdXRvIiwiZ2FsbGVyeUhlaWdodCI6MzAwLCJzaG93SGVhZGVyIjp0cnVlLCJzaG93QnJlYWRjcnVtYnMiOnRydWUsImFsbG93RW1iZWRQb3BvdXQiOnRydWUsImVtYmVkVHlwZSI6InJlYWRPbmx5Iiwic2hvd1JlZnJlc2giOnRydWUsIm9wZW5lZFBsYXlsaXN0Ijp0cnVlLCJzaG93TG9vcCI6dHJ1ZSwic2hvd1NodWZmbGUiOnRydWUsInNob3dGdWxsc2NyZWVuIjp0cnVlLCJuZXh0UHJldmlvdXMiOnRydWUsInZvbHVtZUJ1dHRvbiI6dHJ1ZSwiZ2xvYmFsU2VhcmNoIjp0cnVlLCJ2aWV3IjoibGlzdCIsIm9wZW5OZXdUYWIiOnRydWUsInNvcnQiOnsic29ydEJ5IjoibmFtZSIsInNvcnREaXJlY3Rpb24iOiJhc2MifSwicHJldmlldyI6dHJ1ZSwiYWxsb3dQcmV2aWV3UG9wb3V0Ijp0cnVlLCJkb3dubG9hZCI6dHJ1ZSwiemlwRG93bmxvYWQiOnRydWUsImRpc3BsYXlGb3IiOiJldmVyeW9uZSIsImRpc3BsYXlVc2VycyI6WyJldmVyeW9uZSJdLCJkaXNwbGF5RXhjZXB0IjpbXSwiZm9sZGVycyI6W3siaWQiOiIxMFlQbDdpdGJxTlZ2alZLOEduZ29tb1ZXQS1faWxkSEMiLCJuYW1lIjoiREVVVFNDSCBIRDEwIFNlcmllcyBDb25uZWN0b3IgSW5zdHJ1Y3Rpb25zLm1wNCIsInR5cGUiOiJ2aWRlby9tcDQiLCJzaXplIjoiMTk3NDU3NDUiLCJpY29uTGluayI6Imh0dHBzOi8vZHJpdmUtdGhpcmRwYXJ0eS5nb29nbGV1c2VyY29udGVudC5jb20vMTYvdHlwZS92aWRlby9tcDQiLCJ0aHVtYm5haWxMaW5rIjoiaHR0cHM6Ly9saDMuZ29vZ2xldXNlcmNvbnRlbnQuY29tL0VJZ1czOEw1ZGthWmhBbE4wOTRPa1J4azdlaTdKMUJWVGZqNTF5RjlkMDdwNDY3dWZpU0VlbWN0UHRfOFVma1dyWkR3NkZvTXFWTnZ6SFE9czIyMCIsIndlYlZpZXdMaW5rIjoiaHR0cHM6Ly9kcml2ZS5nb29nbGUuY29tL2ZpbGUvZC8xMFlQbDdpdGJxTlZ2alZLOEduZ29tb1ZXQS1faWxkSEMvdmlldz91c3A9ZHJpdmVzZGsiLCJ3ZWJDb250ZW50TGluayI6Imh0dHBzOi8vZHJpdmUuZ29vZ2xlLmNvbS91Yz9pZD0xMFlQbDdpdGJxTlZ2alZLOEduZ29tb1ZXQS1faWxkSEMmZXhwb3J0PWRvd25sb2FkIiwiY3JlYXRlZCI6IjIwMjMtMDEtMjZUMjA6NDQ6MjIuNjc0WiIsInVwZGF0ZWQiOiIyMDIzLTAxLTAzVDIzOjQ2OjA1LjAxM1oiLCJkZXNjcmlwdGlvbiI6bnVsbCwicGFyZW50cyI6WyIxemo4ejFUU0JBUkpyTjNKNGcxd3B5SGp5OVJHM3E0bnEiXSwic2hhcmVkIjp0cnVlLCJzaGFyZWRXaXRoTWVUaW1lIjpudWxsLCJleHRlbnNpb24iOiJtcDQiLCJyZXNvdXJjZUtleSI6bnVsbCwiY29weVJlcXVpcmVzV3JpdGVyUGVybWlzc2lvbiI6ZmFsc2UsInN0YXJyZWQiOmZhbHNlLCJleHBvcnRMaW5rcyI6bnVsbCwiYWNjb3VudElkIjoiMDAxNjIwMzExNTE0NDMyMzQwODEiLCJwZXJtaXNzaW9ucyI6eyJjYW5FZGl0IjpmYWxzZSwiY2FuUHJldmlldyI6dHJ1ZSwiY2FuRG93bmxvYWQiOnRydWUsImNhbkRlbGV0ZSI6dHJ1ZSwiY2FuVHJhc2giOnRydWUsImNhbk1vdmUiOnRydWUsImNhblJlbmFtZSI6dHJ1ZSwiY2FuU2hhcmUiOnRydWUsImNvcHlSZXF1aXJlc1dyaXRlclBlcm1pc3Npb24iOmZhbHNlLCJjYW5DaGFuZ2VDb3B5UmVxdWlyZXNXcml0ZXJQZXJtaXNzaW9uIjp0cnVlLCJ1c2VycyI6eyIwMzc5NDk4NDg5ODM5MDcxMzQ4OWsiOnsidHlwZSI6ImRvbWFpbiIsInJvbGUiOiJ3cml0ZXIiLCJkb21haW4iOiJjcnVzaGluYWcuY29tIn0sIjAwMTYyMDMxMTUxNDQzMjM0MDgxIjp7InR5cGUiOiJ1c2VyIiwicm9sZSI6Im93bmVyIiwiZG9tYWluIjpudWxsfX19LCJvd25lciI6IkhlYXRoIENvbmtsaW4iLCJleHBvcnRBcyI6W10sIm1ldGFEYXRhIjp7IndpZHRoIjoxMjgwLCJoZWlnaHQiOjcyMCwiZHVyYXRpb24iOiIxOTg5MzIifX1dfQ==”]DEUTSCH HD10 housings are heavily used for diagnostic applications.DEUTSCH HD10 housings are environmentally sealed, thermoplastic, and cylindrical connectors with a coupling ring for mating. HD10 connectors are available with arrangements from 3 to 9 cavities and accept size 4, 12, or 16 DEUTSCH contacts (100-13 amps).HD10 Series SpecificationsConnector System: Wire-to-WireSealable: YesPrimary Locking Feature: Contact RetainerOperating Temperature (Max): 125 °CPrimary Product Color: GrayHybrid Connector: NoSeries OverviewAccepts contact sizes 4 (100 amps), 12 (25 amps), and 16 (13 amps)6-20 AWG (16.00-0.50 mm2)3, 4, 5, 6, and 9 cavity arrangementsIn-line or flange mountCircular, thermoplastic housingCoupling ring for matingAvailable accessories: Backshells, boots, dust caps, gaskets, lanyards, mounting clips, strain reliefConfiguration FeaturesBlank Cavity Position 0, H, JConnector Modification Blocked Cavities, J1939 Type II, KeyRemoved From Front of Flange, NoCoupling Ring, Non-Threaded Rear, Non-Threaded Rear, Key Removed FromFlange, Threaded Rear, With Coupling RingConnector Seal Code E SealNumber of Positions 3, 4, 5, 6, 9Electrical CharacteristicsOperating Voltage (VDC) 250Operating Voltage (VAC) 250Nominal Voltage Architecture (V) 12, 24, 48Body FeaturesCable Exit Angle 180°Body Material PA GFPrimary Product Color Black, Gray, Green
Hd10 Series
