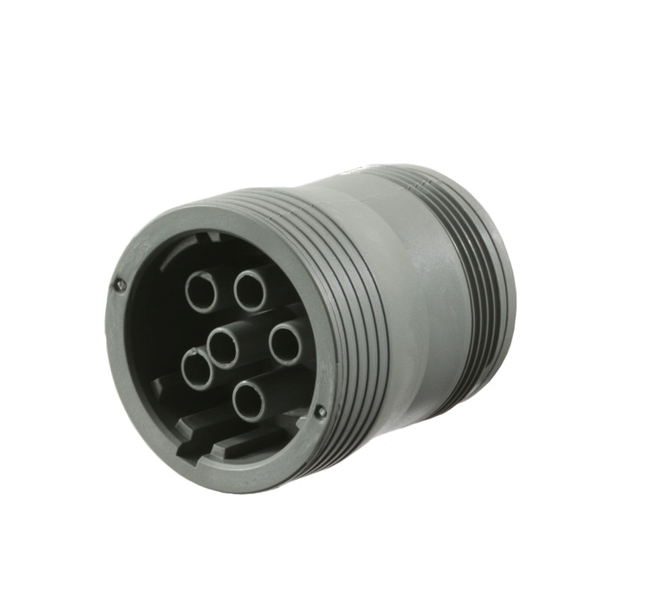

Deutsch, Female Connector Body, NO-Locking Ring, Gray; HD10 Series, 6 Sockets, Plastic, Size 12 | 5C-HD16-6-12SHD10 Series Connector Information:Manufacturer: TE ConnectivityManufacturer Part Number: HD16-6-12SProduct Category: HD10 SeriesProduct Type: Connector BodySpecial Product Attribute: No Coupling RingConnector Color: GrayConnector Locking Type: ManualTerminal Assignment: SocketsTerminal Sizes: Size 16Cavities: 6Shell Size: 12DescriptionProduct AttributeManufacturerTE ConnectivityLength41.12 mmWidth36.91 mmHeight36.91 mmApplicationWire to WireAttachment Hole Diameter2.5 mmColorGrayConnectorsAutomotive ConnectorsContact GenderWithout Socket ContactsCurrent Rating25 ADimensions36.91 mm x 36.91 mm x 41.12 mmFlammability RatingUL 94 V-1GenderPlug (Male)Housing MaterialPolyamide (PA)Ingress ProtectionIP68, IP6K9KInsulationInsulatedLocking MechanismIntegrated in HousingMaterialPlasticMating Part NumberHD10-6-12PX-XXXX, HD14-6-12PX-XXXXMaximum Operating Temperature 125 CMinimum Operating Temperature- 55 CMounting AngleStraightMounting StyleCable Mount / Free HangingNumber of Positions6 PositionPackagingEachProductConnectorsProduct TypeAutomotive ConnectorsSealed / UnsealedSealedSeriesHD10Termination StyleCrimpTradenameHDVoltage Rating250 VWire Gauge Max12 AWGWire Gauge Min14 AWGWire Gauge Range12 AWG to 14 AWGPart # AliasesZPF000000000130382 Learn about our environmentally sealed DEUTSCH HD10 connectors that are heavily used for diagnostic connections in the trucking, agricultural, marine, mining, and construction industries. Watch this video for an overview of the connectors and for step-by-step instructions on inserting and removing contacts, as well as mating and unmating. [integrate_google_drive data=”eyJ0eXBlIjoibWVkaWEiLCJzaG93RmlsZXMiOnRydWUsInNob3dGb2xkZXJzIjp0cnVlLCJtb2R1bGVXaWR0aCI6IjEwMCUiLCJtb2R1bGVIZWlnaHQiOiJhdXRvIiwiZ2FsbGVyeUhlaWdodCI6MzAwLCJzaG93SGVhZGVyIjp0cnVlLCJzaG93QnJlYWRjcnVtYnMiOnRydWUsImFsbG93RW1iZWRQb3BvdXQiOnRydWUsImVtYmVkVHlwZSI6InJlYWRPbmx5Iiwic2hvd1JlZnJlc2giOnRydWUsIm9wZW5lZFBsYXlsaXN0Ijp0cnVlLCJzaG93TG9vcCI6dHJ1ZSwic2hvd1NodWZmbGUiOnRydWUsInNob3dGdWxsc2NyZWVuIjp0cnVlLCJuZXh0UHJldmlvdXMiOnRydWUsInZvbHVtZUJ1dHRvbiI6dHJ1ZSwiZ2xvYmFsU2VhcmNoIjp0cnVlLCJ2aWV3IjoibGlzdCIsIm9wZW5OZXdUYWIiOnRydWUsInNvcnQiOnsic29ydEJ5IjoibmFtZSIsInNvcnREaXJlY3Rpb24iOiJhc2MifSwicHJldmlldyI6dHJ1ZSwiYWxsb3dQcmV2aWV3UG9wb3V0Ijp0cnVlLCJkb3dubG9hZCI6dHJ1ZSwiemlwRG93bmxvYWQiOnRydWUsImRpc3BsYXlGb3IiOiJldmVyeW9uZSIsImRpc3BsYXlVc2VycyI6WyJldmVyeW9uZSJdLCJkaXNwbGF5RXhjZXB0IjpbXSwiZm9sZGVycyI6W3siaWQiOiIxMFlQbDdpdGJxTlZ2alZLOEduZ29tb1ZXQS1faWxkSEMiLCJuYW1lIjoiREVVVFNDSCBIRDEwIFNlcmllcyBDb25uZWN0b3IgSW5zdHJ1Y3Rpb25zLm1wNCIsInR5cGUiOiJ2aWRlby9tcDQiLCJzaXplIjoiMTk3NDU3NDUiLCJpY29uTGluayI6Imh0dHBzOi8vZHJpdmUtdGhpcmRwYXJ0eS5nb29nbGV1c2VyY29udGVudC5jb20vMTYvdHlwZS92aWRlby9tcDQiLCJ0aHVtYm5haWxMaW5rIjoiaHR0cHM6Ly9saDMuZ29vZ2xldXNlcmNvbnRlbnQuY29tL0VJZ1czOEw1ZGthWmhBbE4wOTRPa1J4azdlaTdKMUJWVGZqNTF5RjlkMDdwNDY3dWZpU0VlbWN0UHRfOFVma1dyWkR3NkZvTXFWTnZ6SFE9czIyMCIsIndlYlZpZXdMaW5rIjoiaHR0cHM6Ly9kcml2ZS5nb29nbGUuY29tL2ZpbGUvZC8xMFlQbDdpdGJxTlZ2alZLOEduZ29tb1ZXQS1faWxkSEMvdmlldz91c3A9ZHJpdmVzZGsiLCJ3ZWJDb250ZW50TGluayI6Imh0dHBzOi8vZHJpdmUuZ29vZ2xlLmNvbS91Yz9pZD0xMFlQbDdpdGJxTlZ2alZLOEduZ29tb1ZXQS1faWxkSEMmZXhwb3J0PWRvd25sb2FkIiwiY3JlYXRlZCI6IjIwMjMtMDEtMjZUMjA6NDQ6MjIuNjc0WiIsInVwZGF0ZWQiOiIyMDIzLTAxLTAzVDIzOjQ2OjA1LjAxM1oiLCJkZXNjcmlwdGlvbiI6bnVsbCwicGFyZW50cyI6WyIxemo4ejFUU0JBUkpyTjNKNGcxd3B5SGp5OVJHM3E0bnEiXSwic2hhcmVkIjp0cnVlLCJzaGFyZWRXaXRoTWVUaW1lIjpudWxsLCJleHRlbnNpb24iOiJtcDQiLCJyZXNvdXJjZUtleSI6bnVsbCwiY29weVJlcXVpcmVzV3JpdGVyUGVybWlzc2lvbiI6ZmFsc2UsInN0YXJyZWQiOmZhbHNlLCJleHBvcnRMaW5rcyI6bnVsbCwiYWNjb3VudElkIjoiMDAxNjIwMzExNTE0NDMyMzQwODEiLCJwZXJtaXNzaW9ucyI6eyJjYW5FZGl0IjpmYWxzZSwiY2FuUHJldmlldyI6dHJ1ZSwiY2FuRG93bmxvYWQiOnRydWUsImNhbkRlbGV0ZSI6dHJ1ZSwiY2FuVHJhc2giOnRydWUsImNhbk1vdmUiOnRydWUsImNhblJlbmFtZSI6dHJ1ZSwiY2FuU2hhcmUiOnRydWUsImNvcHlSZXF1aXJlc1dyaXRlclBlcm1pc3Npb24iOmZhbHNlLCJjYW5DaGFuZ2VDb3B5UmVxdWlyZXNXcml0ZXJQZXJtaXNzaW9uIjp0cnVlLCJ1c2VycyI6eyIwMzc5NDk4NDg5ODM5MDcxMzQ4OWsiOnsidHlwZSI6ImRvbWFpbiIsInJvbGUiOiJ3cml0ZXIiLCJkb21haW4iOiJjcnVzaGluYWcuY29tIn0sIjAwMTYyMDMxMTUxNDQzMjM0MDgxIjp7InR5cGUiOiJ1c2VyIiwicm9sZSI6Im93bmVyIiwiZG9tYWluIjpudWxsfX19LCJvd25lciI6IkhlYXRoIENvbmtsaW4iLCJleHBvcnRBcyI6W10sIm1ldGFEYXRhIjp7IndpZHRoIjoxMjgwLCJoZWlnaHQiOjcyMCwiZHVyYXRpb24iOiIxOTg5MzIifX1dfQ==”] DEUTSCH HD10 housings are heavily used for diagnostic applications.DEUTSCH HD10 housings are environmentally sealed, thermoplastic, and cylindrical connectors with a coupling ring for mating. HD10 connectors are available with arrangements from 3 to 9 cavities and accept size 4, 12, or 16 DEUTSCH contacts (100-13 amps). HD10 Series SpecificationsConnector System: Wire-to-WireSealable: YesPrimary Locking Feature: Contact RetainerOperating Temperature (Max): 125 °CPrimary Product Color: GrayHybrid Connector: NoSeries OverviewAccepts contact sizes 4 (100 amps), 12 (25 amps), and 16 (13 amps)6-20 AWG (16.00-0.50 mm2)3, 4, 5, 6, and 9 cavity arrangementsIn-line or flange mountCircular, thermoplastic housingCoupling ring for matingAvailable accessories: Backshells, boots, dust caps, gaskets, lanyards, mounting clips, strain reliefConfiguration FeaturesBlank Cavity Position 0, H, JConnector Modification Blocked Cavities, J1939 Type II, KeyRemoved From Front of Flange, NoCoupling Ring, Non-Threaded Rear, Non-Threaded Rear, Key Removed FromFlange, Threaded Rear, With Coupling RingConnector Seal Code E SealNumber of Positions 3, 4, 5, 6, 9Electrical CharacteristicsOperating Voltage (VDC) 250Operating Voltage (VAC) 250Nominal Voltage Architecture (V) 12, 24, 48Body FeaturesCable Exit Angle 180°Body Material PA GFPrimary Product Color Black, Gray, Green
Hd10 Series
