HD30 Series, Connector, Receptacle, 5 Circuit

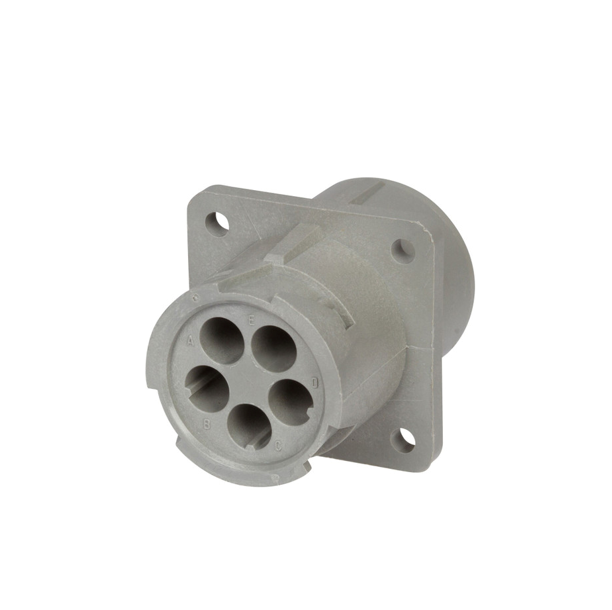

Deutsch, Male Receptacle Connector Body, Locking Ring, Gray; HD10 Series, 5 Pins, Plastic, Size 16 | 5C-HD10-5-16PHD10 Series Connector Information:Manufacturer:  TE ConnectivityManufacturer Part Number:  HD10-5-16PProduct Category:  HD10 SeriesProduct Type:  Connector BodySpecial Product Attribute:  FlangedConnector Color:  GrayConnector Locking Type: Locking RingTerminal Assignment:  PinsTerminal Sizes:  Size 16Cavities:  5Shell Size:  16DescriptionProduct AttributeManufacturerTE ConnectivityLength41.63 mmWidth32.31 mmHeight32.31 mmApplicationWire to WireAttachment Hole Diameter1.5 mmColorGrayConnectorsAutomotive ConnectorsContact GenderWithout Pin ContactsCurrent Rating13 ADimensions32.31 mm x 32.31 mm x 41.63 mmFlammability RatingUL 94 V-1GenderReceptacle (Female)Housing MaterialPolyamide (PA)Ingress ProtectionIP68, IP6K9KInsulationInsulatedLocking MechanismIntegrated in HousingMaterialPlasticMating Part NumberHD16-5-16SX-XXXXMaximum Operating Temperature 125 CMinimum Operating Temperature- 55 CMounting AngleStraightMounting StyleMounting FlangeNumber of Positions5 PositionPackagingEachProductConnectorsProduct TypeAutomotive ConnectorsSealed / UnsealedSealedSeriesHD10Termination StyleCrimpTradenameHDType5-WayVoltage Rating250 VWire Gauge Max14 AWGWire Gauge Min20 AWGWire Gauge Range14 AWG to 20 AWGPart # AliasesZPF000000000130329 Learn about our environmentally sealed DEUTSCH HD10 connectors that are heavily used for diagnostic connections in the trucking, agricultural, marine, mining, and construction industries. Watch this video for an overview of the connectors and for step-by-step instructions on inserting and removing contacts, as well as mating and unmating. [integrate_google_drive data=”eyJ0eXBlIjoibWVkaWEiLCJzaG93RmlsZXMiOnRydWUsInNob3dGb2xkZXJzIjp0cnVlLCJtb2R1bGVXaWR0aCI6IjEwMCUiLCJtb2R1bGVIZWlnaHQiOiJhdXRvIiwiZ2FsbGVyeUhlaWdodCI6MzAwLCJzaG93SGVhZGVyIjp0cnVlLCJzaG93QnJlYWRjcnVtYnMiOnRydWUsImFsbG93RW1iZWRQb3BvdXQiOnRydWUsImVtYmVkVHlwZSI6InJlYWRPbmx5Iiwic2hvd1JlZnJlc2giOnRydWUsIm9wZW5lZFBsYXlsaXN0Ijp0cnVlLCJzaG93TG9vcCI6dHJ1ZSwic2hvd1NodWZmbGUiOnRydWUsInNob3dGdWxsc2NyZWVuIjp0cnVlLCJuZXh0UHJldmlvdXMiOnRydWUsInZvbHVtZUJ1dHRvbiI6dHJ1ZSwiZ2xvYmFsU2VhcmNoIjp0cnVlLCJ2aWV3IjoibGlzdCIsIm9wZW5OZXdUYWIiOnRydWUsInNvcnQiOnsic29ydEJ5IjoibmFtZSIsInNvcnREaXJlY3Rpb24iOiJhc2MifSwicHJldmlldyI6dHJ1ZSwiYWxsb3dQcmV2aWV3UG9wb3V0Ijp0cnVlLCJkb3dubG9hZCI6dHJ1ZSwiemlwRG93bmxvYWQiOnRydWUsImRpc3BsYXlGb3IiOiJldmVyeW9uZSIsImRpc3BsYXlVc2VycyI6WyJldmVyeW9uZSJdLCJkaXNwbGF5RXhjZXB0IjpbXSwiZm9sZGVycyI6W3siaWQiOiIxMFlQbDdpdGJxTlZ2alZLOEduZ29tb1ZXQS1faWxkSEMiLCJuYW1lIjoiREVVVFNDSCBIRDEwIFNlcmllcyBDb25uZWN0b3IgSW5zdHJ1Y3Rpb25zLm1wNCIsInR5cGUiOiJ2aWRlby9tcDQiLCJzaXplIjoiMTk3NDU3NDUiLCJpY29uTGluayI6Imh0dHBzOi8vZHJpdmUtdGhpcmRwYXJ0eS5nb29nbGV1c2VyY29udGVudC5jb20vMTYvdHlwZS92aWRlby9tcDQiLCJ0aHVtYm5haWxMaW5rIjoiaHR0cHM6Ly9saDMuZ29vZ2xldXNlcmNvbnRlbnQuY29tL0VJZ1czOEw1ZGthWmhBbE4wOTRPa1J4azdlaTdKMUJWVGZqNTF5RjlkMDdwNDY3dWZpU0VlbWN0UHRfOFVma1dyWkR3NkZvTXFWTnZ6SFE9czIyMCIsIndlYlZpZXdMaW5rIjoiaHR0cHM6Ly9kcml2ZS5nb29nbGUuY29tL2ZpbGUvZC8xMFlQbDdpdGJxTlZ2alZLOEduZ29tb1ZXQS1faWxkSEMvdmlldz91c3A9ZHJpdmVzZGsiLCJ3ZWJDb250ZW50TGluayI6Imh0dHBzOi8vZHJpdmUuZ29vZ2xlLmNvbS91Yz9pZD0xMFlQbDdpdGJxTlZ2alZLOEduZ29tb1ZXQS1faWxkSEMmZXhwb3J0PWRvd25sb2FkIiwiY3JlYXRlZCI6IjIwMjMtMDEtMjZUMjA6NDQ6MjIuNjc0WiIsInVwZGF0ZWQiOiIyMDIzLTAxLTAzVDIzOjQ2OjA1LjAxM1oiLCJkZXNjcmlwdGlvbiI6bnVsbCwicGFyZW50cyI6WyIxemo4ejFUU0JBUkpyTjNKNGcxd3B5SGp5OVJHM3E0bnEiXSwic2hhcmVkIjp0cnVlLCJzaGFyZWRXaXRoTWVUaW1lIjpudWxsLCJleHRlbnNpb24iOiJtcDQiLCJyZXNvdXJjZUtleSI6bnVsbCwiY29weVJlcXVpcmVzV3JpdGVyUGVybWlzc2lvbiI6ZmFsc2UsInN0YXJyZWQiOmZhbHNlLCJleHBvcnRMaW5rcyI6bnVsbCwiYWNjb3VudElkIjoiMDAxNjIwMzExNTE0NDMyMzQwODEiLCJwZXJtaXNzaW9ucyI6eyJjYW5FZGl0IjpmYWxzZSwiY2FuUHJldmlldyI6dHJ1ZSwiY2FuRG93bmxvYWQiOnRydWUsImNhbkRlbGV0ZSI6dHJ1ZSwiY2FuVHJhc2giOnRydWUsImNhbk1vdmUiOnRydWUsImNhblJlbmFtZSI6dHJ1ZSwiY2FuU2hhcmUiOnRydWUsImNvcHlSZXF1aXJlc1dyaXRlclBlcm1pc3Npb24iOmZhbHNlLCJjYW5DaGFuZ2VDb3B5UmVxdWlyZXNXcml0ZXJQZXJtaXNzaW9uIjp0cnVlLCJ1c2VycyI6eyIwMzc5NDk4NDg5ODM5MDcxMzQ4OWsiOnsidHlwZSI6ImRvbWFpbiIsInJvbGUiOiJ3cml0ZXIiLCJkb21haW4iOiJjcnVzaGluYWcuY29tIn0sIjAwMTYyMDMxMTUxNDQzMjM0MDgxIjp7InR5cGUiOiJ1c2VyIiwicm9sZSI6Im93bmVyIiwiZG9tYWluIjpudWxsfX19LCJvd25lciI6IkhlYXRoIENvbmtsaW4iLCJleHBvcnRBcyI6W10sIm1ldGFEYXRhIjp7IndpZHRoIjoxMjgwLCJoZWlnaHQiOjcyMCwiZHVyYXRpb24iOiIxOTg5MzIifX1dfQ==”]DEUTSCH HD10 housings are heavily used for diagnostic applications.DEUTSCH HD10 housings are environmentally sealed, thermoplastic, and cylindrical connectors with a coupling ring for mating. HD10 connectors are available with arrangements from 3 to 9 cavities and accept size 4, 12, or 16 DEUTSCH contacts (100-13 amps).HD10 Series SpecificationsConnector System: Wire-to-WireSealable: YesPrimary Locking Feature: Contact RetainerOperating Temperature (Max): 125 °CPrimary Product Color: GrayHybrid Connector: NoSeries OverviewAccepts contact sizes 4 (100 amps), 12 (25 amps), and 16 (13 amps)6-20 AWG (16.00-0.50 mm2)3, 4, 5, 6, and 9 cavity arrangementsIn-line or flange mountCircular, thermoplastic housingCoupling ring for matingAvailable accessories: Backshells, boots, dust caps, gaskets, lanyards, mounting clips, strain reliefConfiguration FeaturesBlank Cavity Position 0, H, JConnector Modification Blocked Cavities, J1939 Type II, KeyRemoved From Front of Flange, NoCoupling Ring, Non-Threaded Rear, Non-Threaded Rear, Key Removed FromFlange, Threaded Rear, With Coupling RingConnector Seal Code E SealNumber of Positions 3, 4, 5, 6, 9Electrical CharacteristicsOperating Voltage (VDC) 250Operating Voltage (VAC) 250Nominal Voltage Architecture (V) 12, 24, 48Body FeaturesCable Exit Angle 180°Body Material PA GFPrimary Product Color Black, Gray, Green
