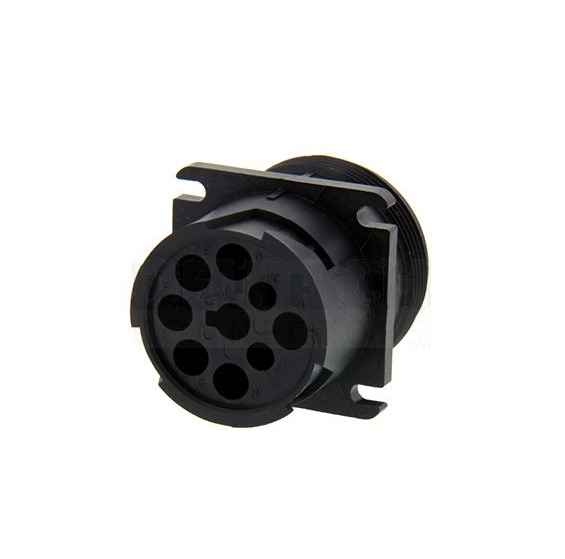

Deutsch, Male Connector Body, Flanged Thread Locking, Black; HD10 Series, 9 Pins, Plastic, Size 16 | HD10-9-1939PEHD10 Series Connector Information:SPECIFICATIONS:Manufacturer: DEUTSCHProduct Series: DEUTSCH HD10Back Shell Size: 23No. of Positions: 9Contact Size: 16Contacts Included: NoContact Type (Pin/Socket): PinGender: Male (Flanged)Mating Gender: PlugMating Part Number: HD16-9-1939SEWire Range: 14-20 AWG (2.0-0.5mm²)Current Rating: 13 AIngress Protection: IP68, IP6K9KQuestions about any Deutsch or Amphenol-Sine Series connectors? Give us a call or shoot us a text: 270-978-3198 Or, drop us an email:
[email protected] AttributeManufacturerTE ConnectivityLength42.18 mmWidth36.5 mmHeight36.5 mmApplicationWire to WireAttachment Hole Diameter1.5 mmColorBlackConnectorsAutomotive ConnectorsContact GenderWithout Pin ContactsCurrent Rating13 ADimensions36.5 mm x 36.5 mm x 42.18 mmFlammability RatingUL 94 V-1GenderReceptacle (Female)Housing MaterialPolyamide (PA)Ingress ProtectionIP68, IP6K9KInsulationInsulatedLocking MechanismIntegrated in HousingMaterialPlasticMaximum Operating Temperature 125 CMinimum Operating Temperature- 55 CMounting AngleStraightMounting StyleMounting FlangeNumber of Positions9 PositionPackagingEachProductConnectorsProduct TypeAutomotive ConnectorsSealed / UnsealedSealedSeriesHD10Termination StyleCrimpTradenameHDTypeReceptacleVoltage Rating250 VWire Gauge Max14 AWGWire Gauge Min20 AWGWire Gauge Range14 AWG to 20 AWGPart # AliasesZPF000000000130530 $HD10-9-1939PE HD10-9-1939PE-LS HD10-9-1939PE-L HD10-9-1939PE-LD DEUTSCH HD10 housings are heavily used for diagnostic applications.DEUTSCH HD10 housings are environmentally sealed, thermoplastic, and cylindrical connectors with a coupling ring for mating. HD10 connectors are available with arrangements from 3 to 9 cavities and accept size 4, 12, or 16 DEUTSCH contacts (100-13 amps).HD10 Series SpecificationsConnector System: Wire-to-WireSealable: YesPrimary Locking Feature: Contact RetainerOperating Temperature (Max): 125 °CPrimary Product Color: GrayHybrid Connector: NoSeries OverviewAccepts contact sizes 4 (100 amps), 12 (25 amps), and 16 (13 amps)6-20 AWG (16.00-0.50 mm2)3, 4, 5, 6, and 9 cavity arrangementsIn-line or flange mountCircular, thermoplastic housingCoupling ring for matingAvailable accessories: Backshells, boots, dust caps, gaskets, lanyards, mounting clips, strain reliefConfiguration FeaturesBlank Cavity Position 0, H, JConnector Modification Blocked Cavities, J1939 Type II, KeyRemoved From Front of Flange, NoCoupling Ring, Non-Threaded Rear, Non-Threaded Rear, Key Removed FromFlange, Threaded Rear, With Coupling RingConnector Seal Code E SealNumber of Positions 3, 4, 5, 6, 9Electrical CharacteristicsOperating Voltage (VDC) 250Operating Voltage (VAC) 250Nominal Voltage Architecture (V) 12, 24, 48Body FeaturesCable Exit Angle 180°Body Material PA GFPrimary Product Color Black, Gray, Green
