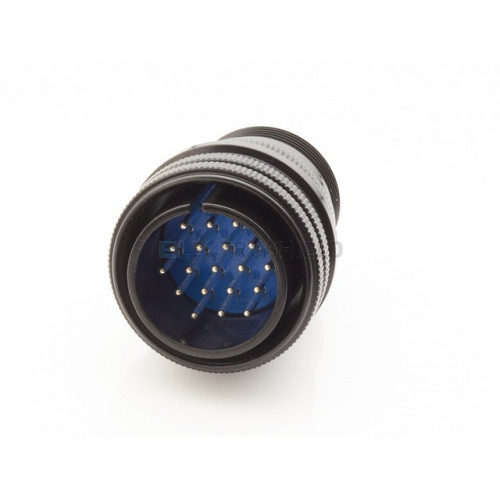

PLUG | DDK, 19 Pin – Solder Contacts, Straight Cable Plug, Cation Electroplating, DMS3106A22-14P-FSPECIFICATIONSSpecificationsManufacturer Part NumberDMS3106A22-14P-FItem NumberDMS3106A22-14P-FManufacturerFujikura, Formerly DDKProduct SeriesDMS-FFamily SeriesFujikura, Formerly DDK Connectors, DMS-F SeriesNo. of Contacts19Contact GenderPinShell StyleStraight PlugShell Classification3106AShell ConstructionSolid ShellInsert Code22-14Insert PositionStandardMoisture ResistantNoContact MaterialSilver PlatedWire Sizes19-#16Service CodeAShell Size22Length2.12 InchesDiameter1.37 InchesNet Weight0.06244 lbsGross Weight0.06244 lbsDMS A/B-F series is compatible with MIL-DTL-5015 and a soldering termination connector. A various combination of the plugs, receptacles and accessories is also available and can be used for cable-to-cable usage and cable-to-panel usage. DMS A/B-F series is provided with 11 kinds of shell sizes from 12 to 36, 5 kinds of contact size from #16 to #0 and 73 kinds of insert arrangements to accommodate a wide variety of applications.Aerospace, Machine Tool, Measurement Equipment, Communication Equipment and Other Industrial EquipmentThe barriers are placed between each contact on the insert to extend the creepage distance for the improvement of dielectric withstanding voltage characteristic.Each of the plug shells and the receptacle shells can apply to both of the pin insert assemblies and the socket insert assemblies respectively.A combination of the sockets for input and pin for output is recommended since DMS A/B-F series is often used for high voltage equipment to prevent from any accidents.The plug shell has a key way and the receptacle shell has a key. The key will be inserted into the key way before the contacts are mated. The insert is rotated within the shell from standard key way and 4 kinds of alternate insert positions, W, X, Y and Z are available to avoid cross–plugging problem in applications requiring the use of more than one connector of the same size and arrangement.The solder cups in the insert assembly face in same direction to solder cables easier.The surface of shells is coated with zinc plating and finished with cation electroplating finish(*) in color black to conform to RoHS directives. (* : Cadmium plating and Olive Drab color is MIL- DTL-5015 specification). The conventional DMS series in Olive Drab color is also available upon your request.
