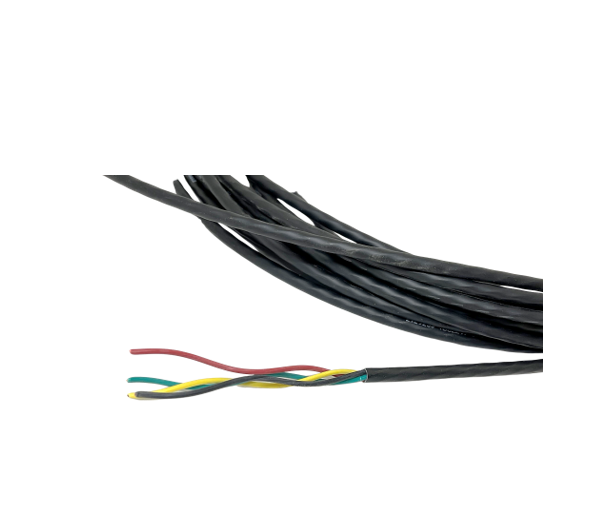

4 Wire CAN-BUS Cable, Black Jacketed J1939 Cable, 18awg EXRAD

4 Wire GXL, Twisted CANBUS, 18awg EXRAD Jacketed 11783 ISOBUS CableGeneral PropertiesConstruction clarification —“4 wires twisted together” addedApplication:  Agricultural EquipmentProduct Description:  EXRAD 125 4 X 18 19/.0092 BC GXL CableOEM Manufacturer:  Champlain CableCharacteristics:Cable:  EXRAD 125 18 AWG 4 Conductor CableConductors:  18 19/.0092 Bare CopperInsulation:  EXRAD 125 wall thickness: 23 milCable Description: 4 X 18 AWG Conductors —4 wires twisted togetherJacket Material:  EXRAD 125  24 milConductor Resistance:  18 AWG = 6.8 ohms/kft 22.3 mohms/m @ 20o C max.Voltage:  60 volts max.Capacitance:  (CAN H to CAN L) 75 pf/M Maximum ISO-11783-2,  110 pf/M Maximum between adjacent conductors per ISO-11783-2Impedance:  75 Ohms Nominal per ISO 11783-2:2002EConductor Resistance:  50 mohms/m @ 20C MaxTemperature Range: -40º C to 125º C per ISO 6722Bend Radius:  1.34in |  34.06mm15-07706-001
