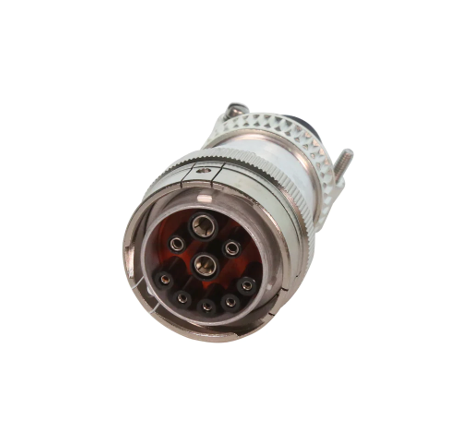

Deutsch, ISOBUS, Female Plug Connector, Locking Ring, Aluminum; HD30 Series, Aluminum, 9 Pins, Size 24, Connector Kit with Clamp and Boot | 5C-HDB36-24-91SE-059Manufacturer: TE ConnectivityManufacturer Part Number: HDB36-24-91SE-059Product Category: HD30 SeriesProduct Type: ConnectorsSpecial Product Attribute: Connector Kit with Clamp & Boot, N SealConnector Color: AluminumConnector Locking Type: Locking RingTerminal Assignment: PinTerminal Sizes: Size 12, Size 16, Size 8Cavities: 9Shell Size: 24USE: ISOBUSKIT DOES NOT INCLUDE SOCKETS/TERMINALSDescriptionProduct AttributeManufacturerTE ConnectivityLength49.32 mmWidth49.32 mmApplicationWire to WireAttachment Hole Diameter4 mmColorNaturalConnectorsAutomotive ConnectorsContact GenderWithout Socket ContactsCurrent Rating13 A, 25 A, 60 ADimensions49.32 mm x 49.32 mmGenderPlug (Male)Ingress ProtectionIP67Locking MechanismIntegrated in HousingMaterialAluminumMating Part NumberHD34-24-91PMaximum Operating Temperature 125 CMinimum Operating Temperature- 55 CMounting AngleStraightMounting StyleCable Mount / Free HangingNumber of Positions9 PositionPackagingKitProductConnectorsProduct TypeAutomotive ConnectorsSealed / UnsealedSealedSeriesHD30Termination StyleCrimpTradenameHDTypeBreakawayVoltage Rating250 VACWire Gauge Max8 AWGWire Gauge Min20 AWGWire Gauge Range8 AWG to 20 AWGPart # Aliases1-1899783-1 ZPF000000000130524 HD30 Series Product OverviewDEUTSCH HD30 housings offer color-coded wire seals in normal and extra thin walls.DEUTSCH HD30 housings are circular shaped, metal connectors that are offered in multiple pin configurations from 2 to 47 cavities. HD30 housings feature a coupling ring for mating and accept DEUTSCH contact sizes 4 through 20 (100-7.5 amps).DEUTSCH HD30 connectors are constructed from a metal shell developed to meet the needs of the heavy-duty equipment and transportation industries.Connector System: Wire-to-WireSealable: YesConnector Position Assurance Capable: NoCircuit Application: Power & SignalOperating Temperature Range: -55 – 125 °CHD30 Series Connector Specifications:Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)6-22 AWG (13.00-0.35 mm2)2, 6, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47 cavity arrangementsIn-line or flange mountCircular, aluminum housingCoupling ring for matingAvailable accessories: Backshells, boots, dust caps, gaskets, mounting hardware, strain reliefFeaturesProduct Type FeaturesConnector & Housing Shape CircularConnector & Housing Type Housing for Female Terminals, Housing forMale TerminalsConnector System Wire-to-WireSealable YesHybrid Connector No, YesPrimary Locking Feature Contact Retainer, Integrated in HousingConnector & Contact Terminates To Wire & CableConfiguration FeaturesBlank Cavity Position 0Connector Modification Adapter, Blocked Cavities, Cable Clamp, Ring AdapterConnector Seal Code E Seal, N Seal, T SealNumber of Positions 6, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, 47Electrical CharacteristicsOperating Voltage (VDC) 250Operating Voltage (VAC) 250Nominal Voltage Architecture (V) 12, 24, 42, 48, 80, 90, 125, 240Body FeaturesCable Exit Angle 180°Body Material Aluminum, Other, PA GFPrimary Product Color Blue, GreenContact FeaturesContact Size Size 12, Size 16, Size 18, Size 20, Size 21, Size 22, Size 24, Size 4, Size 8Contact Type Pin, SocketMating Pin Diameter (mm) 1.02, 1.5, 1.56, 1.59, 2.39, 2.5, 3.61, 4, 5.72Mating Pin Diameter (in) .04, .059, .062, .063, .094, .098, .142, .157, .225Contact Current Rating (Max) (A) 7.5, 13, 25, 60, 100Mechanical AttachmentMounting Feature With, WithoutTerminal Position Assurance NoStrain Relief Add By Accessory, WithMating Alignment Type Guide Post, Guide Slot, Not KeyedMating Alignment With, WithoutConnector Mounting Type Cable Mount (Free-Hanging), Panel MountDimensionsProduct Width (mm) 42.97, 44.45, 49.32, 50.8Product Width (in) 1.692, 1.75, 1.942, 2Product Length (mm) 38.61, 41.83, 42.97, 65.28, 66.34, 68.5, 77.7, 81.05, 81.7, 84.28Product Length (in) 1.52, 1.647, 1.692, 2.57, 2.612, 2.697, 3.059, 3.191, 3.217, 3.318Product Height (mm) 41.28, 42.97, 47.53, 49.32, 81.05, 116.74Product Height (in) 1.625, 1.692, 1.875, 1.942, 3.191, 4.596Accepts Wire Insulation Diameter Range (mm) 1.02 – 2.1, 1.02 – 2.41, 1.35 – 2.62, 1.35 – 2.69, 1.35 – 3.05, 2.23 – 2.69, 2.23 – 3.4, 2.46 – 4.01, 2.54 – 3.4, 3.4 – 4.32, 3.43 – 5.59, 4.83 – 6.1, 6.63 – 7.42, 7.11 – 7.42Accepts Wire Insulation Diameter Range (in) .04 – .083, .04 – .095, .053 – .103, .053 – .106, .053 – .12, .088 – .106, .088 – .134, .097 – .158, .1 – .134, .134 – .17, .135 – .22, .19 – .24, .261 -.292, .28 – .292Usage ConditionsOperating Temperature (Max) (°C) 70, 75, 80, 85, 90, 100, 105, 110, 120, 125Operating Temperature (Max) (°F) 158, 167, 176, 185, 194, 212, 221, 230, 248, 257Operating Temperature Range (°C) -55 – 125Operating Temperature Range (°F) -67 – 257Operation/ApplicationCircuit Application Power & SignalIndustry StandardsDegree of Protection IP67Packaging Features
Isobus
