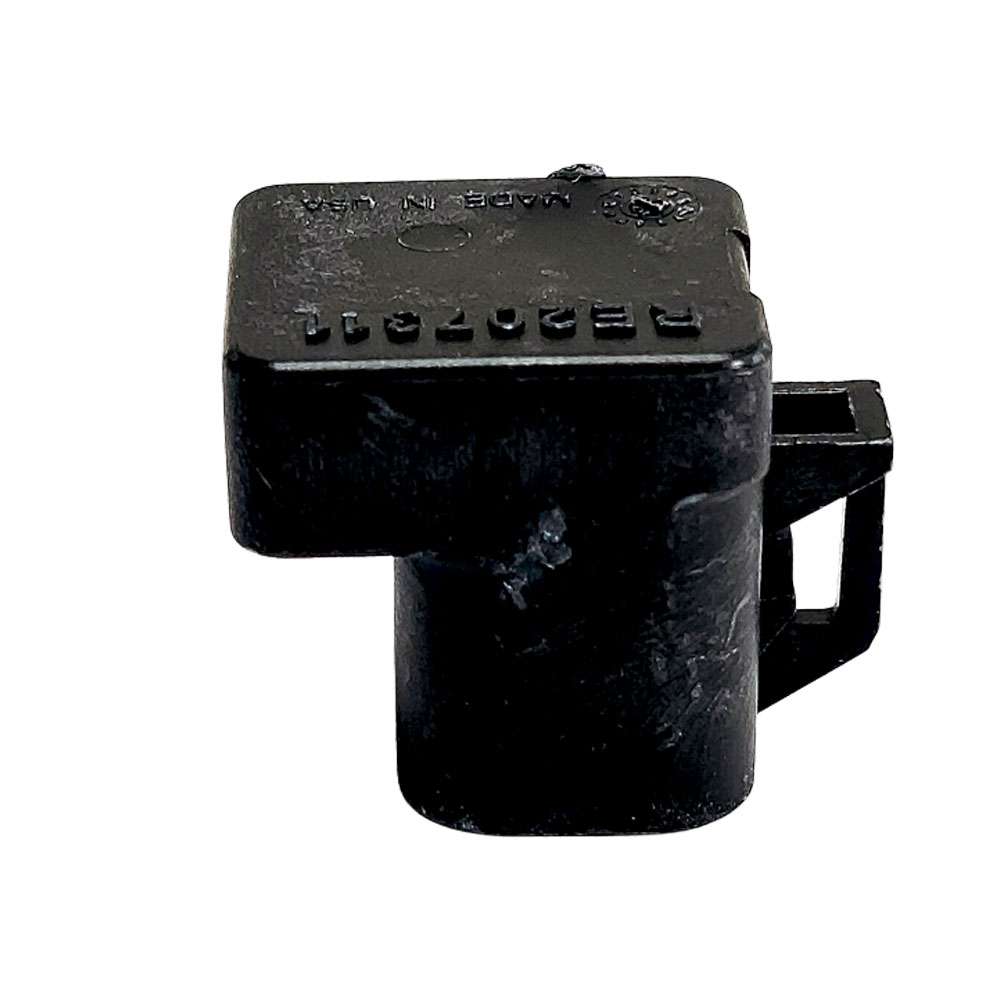

ISOBUS Terminator-TBC (Terminating Bias Circuit)- Powell TBC stand-alone terminator for CAN BUS systemsTBC • Terminating Bias Circuit TBC allows for simple, stand-alone termination of CAN BUS systems. The TBC can be used for active or passive systems and is the ideal cost-effective solution for termination on every location of the BUS.The TBC Termination Bias Circuit is an inexpensive, separate unit that provides the electrical bias and termination at each end of a CAN Bus segment needed to suppress reflections on the CAN Bus. The TBC is compatible with the ISO 11783-2 and SAE J1939 standards.Industry Part #: TBCManufacturer Part #: 90-154180-01Manufacturer: Powell AgricultureDescription: Terminating Mini CANConnector: ISOBUS ConnectorConnector Compatibility: Metri-Pack 150 Series, 6 Way FemaleSee Other Required Components for the ISOBUS 11783 SystemTBC stand-alone terminatorISOBUS Deutsch Connector HDB36-24-91SE-059Mating ISOBUS Deutsch Connector HD34-24-9PNCANBUS Certified 4 Wire Twisted CAN CableCANBUS Certified 2 Wire Twisted CAN Cable with drain & shieldAvailable Applications:Need or looking for an ISOBUS Cable extension? Email Us!The ISO 11783 standard is based on a Controller Area Network (CAN) protocol, which is used to control some of the components in agricultural equipment for many years. ISO 11783 defines a standard format for messages travelling between electronic devices. Complying with ISO 11783 ensures the connectors and wiring harnesses are compatible and their electronic systems can communicate with each other.Compatible with John Deere OEM Part# CANBUS TERMINATOR: RE207311Plug Compatibility: 6 Socket Female Metri-Pack 150 Series Connection
