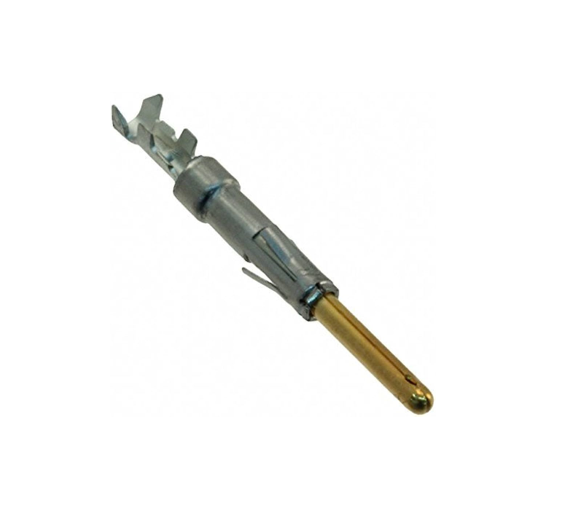

ITT CANNON, Pin, 22-20 AWG, T2P Series 192922-1460, T2P20MC1LZ

ITT CANNON, Pin, 22-20 AWG, T2P Series 192922-1460, T2P20MC1LZManufacturer:  ITT CannonType:  TerminalTerminal Type:  Socket/FemaleWire Size:  22-20awgDescriptionProduct AttributeManufacturer:ITT CannonProduct Category:Automotive ConnectorsRoHS: DetailsProduct:ContactsAccessory Type:-Number of Positions:-Pitch:-Gender:Pin (Male)Mounting Style:Cable Mount / Free HangingTermination Style:CrimpContact Plating:GoldWire Gauge Min:22 AWGWire Gauge Max:20 AWGSeries:T2PBrand:ITT CannonContact Material:BrassCurrent Rating:13 AProduct Type:Automotive ConnectorsFactory Pack Quantity:100Subcategory:Automotive ConnectorsType:TerminalsWire Gauge Range:22 AWG to 20 AWGPart # Aliases:192922-1460Unit Weight:0.015873 oz ITT Cannon Trident connectors are a family of cost-effective, reliable circular connectors that include the Trident Ringlock, Trident Neptune and TNM series. All three series of ITT Cannon Trident connectors are fully-sealed to IP67. The Trident Ringlock and Trident Neptune series are UL94-V0 circular plastic connectors with a metal coupling nut and bayonet retention mechanisms, providing the cost and weight benefits of a plastic connector with the durability of a metal connector. For full details on the ITT Cannon Trident connector family, see the product specifications below.FEATURESRinglockUp to 250VAC rms operating voltageUp to 380VAC rms for 7-position connectorUp to 13A current rating (16A with high conductivity contacts)-55°C to 105°C operating temperature range5000MΩ insulation resistance at 500VDCUp to 500 mating cyclesUp to IP65 sealingTrident Neptune (TN)Up to 250VAC rms operating voltageUp to 13A current rating (Up to 16A with high conductivity contacts, up to 30A with power contacts)-55°C to 105°C operating temperature range5000MΩ insulation resistance at 500VDCUp to 500 mating cyclesUp to IP67 sealingTrident Neptune Metal (TNM)Up to 250VAC rms operating voltageUp to 13A current rating (Up to 16A with high conductivity contacts, up to 30A with power contacts, up to 4A with D-sub contacts)-55°C to 105°C operating temperature range5000MΩ insulation resistance at 500VDCUp to 200 mating cyclesUp to IP67 sealingTrident High Voltage (THV)Up to 500VAC rms operating voltageUp to 34A current rating with power contacts-40ºC to 125ºC operating temperature range5000MΩ insulation resistance at 500VDCUp to 200 Mating CyclesUp to IP67 sealing
