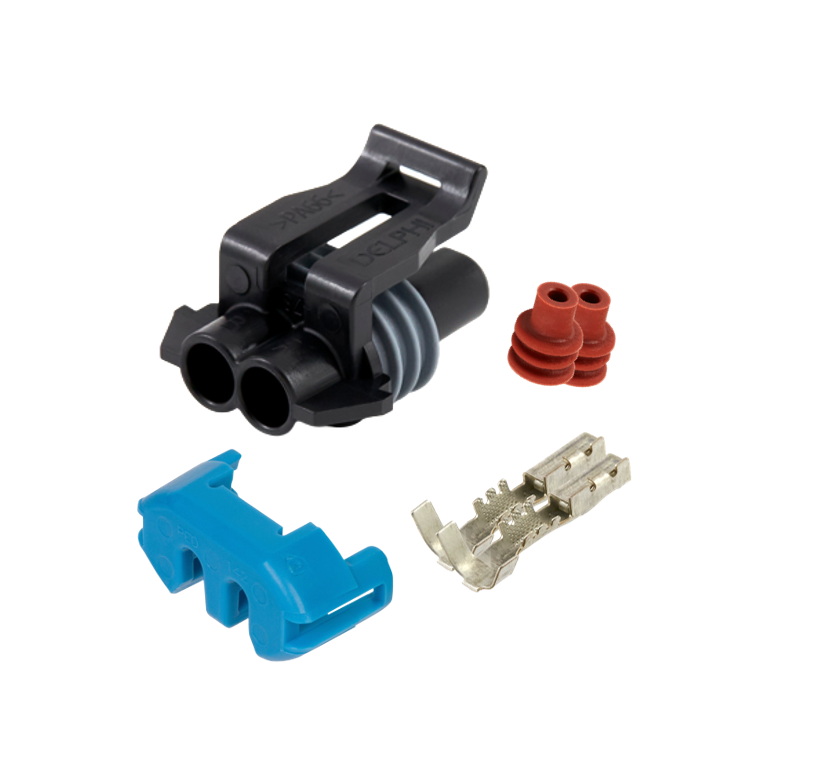

2 Way Metri-Pack 150 Connector Kit, Plug, Female, Kit Assembly Includes 12052641 & Components | 415K-2F2 CIRCUIT MALE METRI–PACK 150 SINGLE SIDE CONNECTOR KITConnector Body: Female PlugCircuits: 2Wire AWG Terminals: 18-16Includes: TPA Lock & Wire/Cable SealsQuestions about what you need and what goes with what? You’re not alone. We get asked on a daily basis about the specs, compatibility and connector identification. Don’t hesitate to email us
[email protected] or call us at 270-978-3198. You can always text us at the same number!In the meantime, check out our knowledge base and YouTube Video the reviews the basics of Metri-Pack 150 Series. 2 Way Metri-Pack 150 Connector Kit, Plug, Female, Kit Assembly Includes 12052641 & Components | 415K-2FKit Item QtyKit Item SKUKit Item OEM#Part-Item Description1415C-2F12052641 Connector Body, Delphi-Aptiv 12052641 Metri-Pack 150 Series, 2-Way Female, Sockets, 14 Amp Max | 415C-2F2415S-181612048074Delphi-Aptiv 12048074, SOCKET, Metri-Pack Female Loose Terminal, 150 Series, 18-16 GA2415SEAL-R1815324973 Delphi-Aptiv 15324973 Metri-Pack 150 Series Cable Seal, Dark Red, 18-16 AWG | 415SEAL-R181415TPA2-U12052634 Delphi-Aptiv 12052634 Metri-Pack 150 Series 2-Contact TPA Secondary Lock, Blue Aptiv-Delphi brand Metri-Pack sealed connectors are available in device and in-line connections for underhood vehicle applications. Metri-Pack 150 Series connectors can meet or exceed the requirements for most marine, appliance, and industrial control applications. Utilizing triple-rib peripheral silicone rubber seals, Metri-Pack 150 Series sealed systems are ideally suited for critical, low-energy electronic applications that require protection from environmental hazards.Metri-Pack 150 Series ApplicationsAgricultureMarineAutomotiveLarge Trucks, SemiDump TrucksEngine & Motor ApplicationsConstruction EquipmentOff-RoadUTV/ATV VehiclesMetri-Pack 150 Series FeaturesConnector Position Assurance (CPA)Terminal Position Assurance (TPA)14 Amps continuous maximum current ratingSmall overall dimensionsLow energy, low voltage capabilityExcellent resistance to temperature, chemicals and abrasion-40ºC to 125ºC temperature rangeMetri-Pack 150 Series Technical SpecsCABLE RANGE (mm2): …….. 0.35-1.0CURRENT RANGE (AMPS): ……… 0-14TEMP RANGE OC: ……….. -40 to 125RESISTANCE: …….. <10mW@20mVVOLTAGE DROP: ….<10.0 mV/ampCENTERLINE SPACING (mm): …….. 6.0BLADE WIDTH (mm): ……………… 1.5CONNECTION SYSTEMSDelphi Metri-Pack Connection Systems utilize internationally standardized male blade sizes, allowing for flexibility in design. Blade sizes range from 1.5 mm to 8 mm with current capability ranging from 14 to 60 amps. Metri-Pack Connectors are designed to be compatible with processing techniques such as automated pull-to-seat and push-to-seat assembly, dual-stage crimping, load cell crimp inspection and automated part identification and orientation. Delphi Metri-Pack Connector systems with silver interface platings pass the SAE® (Society of Automotive Engineers) J2030* Heavy-Duty Electrical Connector Standard.Ideal for low energy electronic circuits or power circuit applications, the Metri-Pack product line includes:High-performance interconnects in sealed or unsealed versionsCustom-engineered direct connections to motors, switches, sensors and other devicesEnvironmentally sealed electronic headers with current capacity of 14 amps, designed for service in severe environmentsJunction blocks and electrical centersBenefitsPass SAE J2030* Heavy-Duty Electrical Connector Standard (with silver interface platings)Extended product range offers significant design and application versatilityUsed in high current to low energy circuits for electrical versatilityStrength and stability of terminals helps assure correct alignmentUtilizes internationally standard male blade sizes for design flexibilityConnector Position Assurance (CPA) and Terminal PositionAssurance (TPA) for superior connection reliabilitySealed version for excellent resistance to temperature, chemicals and abrasionTesting to SAEJ2030Typical ApplicationsMetri-Pack Connection Systems are suited for use in flat blade connections for electronic through high current applications.Performance AdvantagesWith an extended product range, Metri-Pack Connection Systems offer significant design and application versatility. Metri-Packs feature Terminal Position Assurance (TPA), Connector Position Assurance (CPA), serrated crimps and triple-rib peripheral seals. In addition, these field-proven systems provide exceptional performance, confirmed over many years on global applications.
