$33.64
$52.81

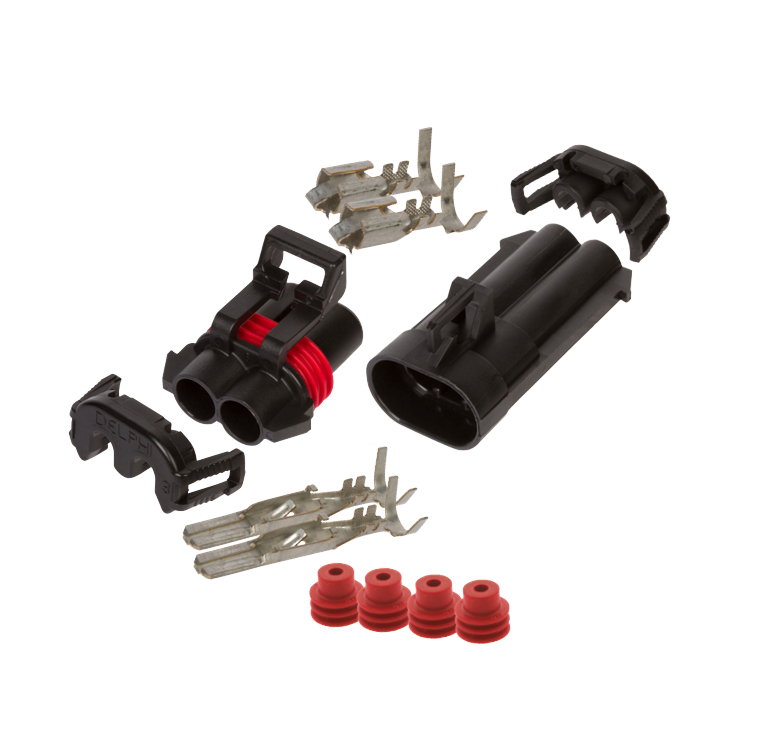

Plug-Receptacle Complete Connector Kit, Female Shroud, Male Tower, Delphi-Aptiv, Metri-Pack 480 Series Sealed, Sockets, Pins, Seals & Locks, 2 Way, 42 AMP | 448PRK-2Male Receptacle Connector: 12065863 Female Plug Connector: 12052613 Male Pin Terminal: 12065196 Female Socket Terminal: 12048451 Wire Seal: 15324989 TPA Lock: 12131543 Category: Aptiv Metri-Pack 480 SeriesManufacturer:AptivComponent Type: Male & Female Connector Kit# of Circuits: 2Max Current 42 AmpsUse in high demand situations along with low-energy electronic circuitsEmpty cavities must be filled with cavity plugsKit Item QtyKit Item SKUKit Item OEM#Part-Item Description1 448C-3F12131592Connector Body, Delphi-Aptiv, 12131592 Metri-Pack 480 Series Sealed Connector, Female, 3 Way, 42 AMP | 448C-3F1448C-3M15344628Connector Body, Delphi-Aptiv, 15344628 Metri-Pack 480 Series Sealed Connector, Male, 3 Way, 42 AMP | 448C-3M3448S-161412048451Contact-Terminal, Delphi-Aptiv, 12048451 Metri-Pack 480 Series Sealed Connector, Female Socket, 16-14 AWG | 448S-16143448P-161412065196Contact-Terminal, Delphi-Aptiv, 12065196 Metri-Pack 480 Series Sealed Connector, Female Socket, 16-14 AWG | 448P-16146448SEAL-R1415324989Wire – Cable Seal, Delphi-Aptiv 15324989 Metri-Pack 480 Series Cable Seal, Red, 14-12 AWG | 448SEAL-R142448TPA-3-U12131543Delphi-Aptiv 12131543 Metri-Pack 480 Series, 3-Way TPA Secondary Lock, Black Aptiv-Delphi brand Metri-Pack sealed connectors are available in device and in-line connections for underhood vehicle applications. Metri-Pack 280 Series connectors can meet or exceed the requirements for most marine, appliance, and industrial control applications. Utilizes triple-rib peripheral silicone rubber seals.Metri-Pack 480 Series ApplicationsAgricultureMarineAutomotiveLarge Trucks, SemiDump TrucksEngine & Motor ApplicationsConstruction EquipmentOff-RoadUTV/ATV VehiclesMETRI-PACK 480 SERIESAvailable in device and in-line connections for vehicle applications, Metri-Pack 280 Series connectors can meet or exceed the requirements for most marine, appliance, and industrial control applications. Ideally suited for limited space applications that do not require environmental protection, Metri-Pack 280 Series products are extremely versatile.Available in device and in-line connections for under-hood vehicle applications, Metri-Pack 280 Series sealed connectors can meet or exceed the requirements for most marine, appliance, and industrial control applications. Utilizing triple-rib peripheral silicone rubber seals, Metri-Pack 280 Series sealed systems are ideally suited for critical, low-energy electronic applications that require protection from environmental hazards.480 Metri-Pack FeaturesConnector Position Assurance (CPA)Terminal Position Assurance (TPA)42 Amps continuous maximum current ratingLow energy, low voltage capabilityExcellent resistance to temperature, chemicals and abrasion-40ºC to 125ºC temperature range480 Metri-Pack SpecsCABLE RANGE (mm2): ……. 0.35-5.0 CURRENT RANGE (AMPS): …….. 0-42 TEMP RANGE OC: ………. -40 to 125 RESISTANCE: …… <10mW@20mV VOLTAGE DROP: …… <3.0mV/amp CENTERLINE SPACING (mm): ……. 6.9 BLADE WIDTH (mm): …………….. 4.8METRI-PACK CONNECTION SYSTEMSDelphi Metri-Pack Connection Systems utilize internationally standardized male blade sizes, allowing for flexibility in design. Blade sizes range from 1.5 mm to 8 mm with current capability ranging from 14 to 60 amps. Metri-Pack Connectors are designed to be compatible with processing techniques such as automated pull-to-seat and push-to-seat assembly, dual-stage crimping, load cell crimp inspection and automated part identification and orientation. Delphi Metri-Pack Connector systems with silver interface platings pass the SAE® (Society of Automotive Engineers) J2030* Heavy-Duty Electrical Connector Standard.Ideal for low energy electronic circuits or power circuit applications, the Metri-Pack product line includes:High-performance interconnects in sealed or unsealed versionsCustom-engineered direct connections to motors, switches, sensors and other devicesEnvironmentally sealed electronic headers with current capacity of 14 amps, designed for service in severe environmentsJunction blocks and electrical centersBenefitsPass SAE J2030* Heavy-Duty Electrical Connector Standard (with silver interface platings)Extended product range offers significant design and application versatilityUsed in high current to low energy circuits for electrical versatilityStrength and stability of terminals helps assure correct alignmentUtilizes internationally standard male blade sizes for design flexibilityConnector Position Assurance (CPA) and Terminal PositionAssurance (TPA) for superior connection reliabilitySealed version for excellent resistance to temperature, chemicals and abrasionTesting to SAEJ2030Typical ApplicationsMetri-Pack Connection Systems are suited for use in flat blade connections for electronic through high current applications.Performance AdvantagesWith an extended product range, Metri-Pack Connection Systems offer significant design and application versatility. Metri-Packs feature Terminal Position Assurance (TPA), Connector Position Assurance (CPA), serrated crimps and triple-rib peripheral seals. In addition, these field-proven systems provide exceptional performance, confirmed over many years on global applications.
Metri-Pack Connector Kits
