12awg Metri-Pack Connectors Terminal, 280 Series, Sealed, Cable Seal

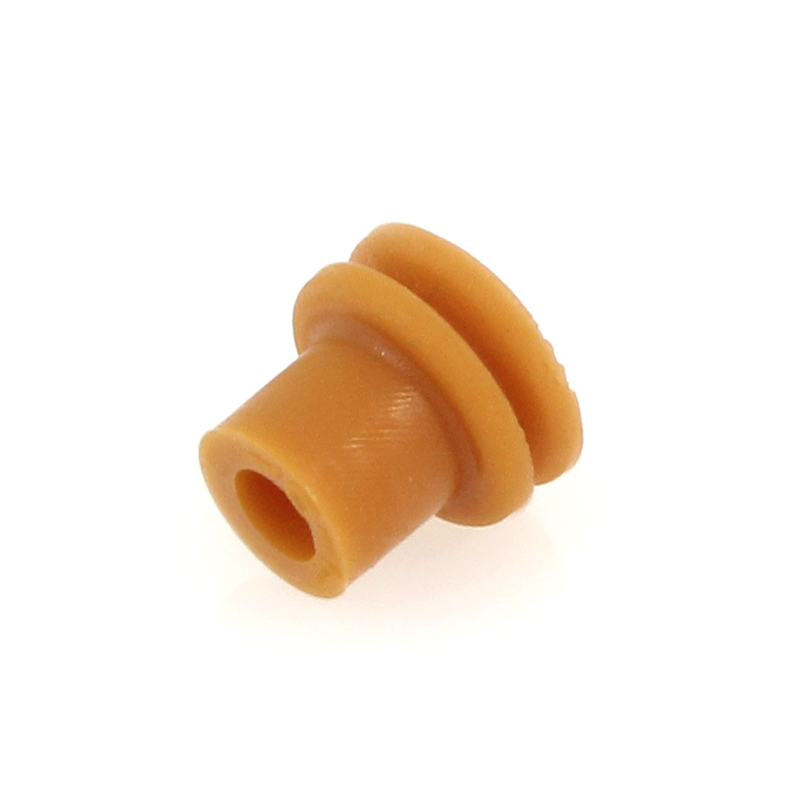

Wire-Cable Seal, Delphi-Aptiv 15366067 Metri-Pack GT280 Series, Tan, 14-12 AWG | 428GTSEAL-T12Manufacturer: Delphi-AptivManufacturer OEM PN#: 15366067Seal Color:  TanContact Use:   Receptacle & Plug ConnectorsWire Gauge:  14-12Category: Metri-Pack GT280 SeriesMax Current 14 AmpsOperating Temperature: -40c to 125cCable Diameter: 3.4mm to 3.9mmUse in high demand situations along with low-energy electronic circuitsEmpty cavities must be filled with cavity plugsAutomotive Connectors Single Wire Seal DescriptionProduct AttributeManufacturerAptivLength6 mmAccessory TypeCable SealColorOrangeConnectorsAutomotive ConnectorsFamilyGTMaterialSiliconeMounting StyleCable Mount / Free HangingNumber of Positions1 PositionOutside Diameter6.35 mmPackagingEachProductAccessoriesProduct TypeAutomotive ConnectorsSeriesGT 280Termination StyleCrimpTradenameGT Aptiv-Delphi brand Metri-Pack sealed connectors are available in device and in-line connections for underhood vehicle applications.  Metri-Pack 150 Series connectors can meet or exceed the requirements for most marine, appliance, and industrial control applications. Utilizing triple-rib peripheral silicone rubber seals, Metri-Pack 150 Series sealed systems are ideally suited for critical, low-energy electronic applications that require protection from environmental hazards.Metri-Pack 280GT Series ApplicationsAgricultureMarineAutomotiveLarge Trucks, SemiDump TrucksEngine & Motor ApplicationsConstruction EquipmentOff-RoadUTV/ATV VehiclesMetri-Pack 280GT Series FeaturesConnector Position Assurance (CPA)Terminal Position Assurance (TPA)14 Amps continuous maximum current ratingSmall overall dimensionsLow energy, low voltage capabilityExcellent resistance to temperature, chemicals and abrasion-40ºC to 125ºC temperature rangeMetri-Pack 280GT Series Technical SpecsCABLE RANGE (mm2): …….. 0.35-1.0CURRENT RANGE (AMPS): ……… 0-14TEMP RANGE OC: ……….. -40 to 125RESISTANCE: …….. <10mW@20mVVOLTAGE DROP: ….<10.0 mV/ampCENTERLINE SPACING (mm): …….. 6.0BLADE WIDTH (mm): ……………… 1.5CONNECTION SYSTEMSDelphi Metri-Pack Connection Systems utilize internationally standardized male blade sizes, allowing for flexibility in design.  Blade sizes range from 1.5 mm to 8 mm with current capability ranging from 14 to 60 amps.  Metri-Pack Connectors are designed to be compatible with processing techniques such as automated pull-to-seat and push-to-seat assembly, dual-stage crimping, load cell crimp inspection and automated part identification and orientation. Delphi Metri-Pack Connector systems with silver interface platings pass the SAE® (Society of Automotive Engineers) J2030* Heavy-Duty Electrical Connector Standard.Ideal for low energy electronic circuits or power circuit applications, the Metri-Pack product line includes:High-performance interconnects in sealed or unsealed versionsCustom-engineered direct connections to motors, switches, sensors and other devicesEnvironmentally sealed electronic headers with current capacity of 14 amps, designed for service in severe environmentsJunction blocks and electrical centersBenefitsPass SAE J2030* Heavy-Duty Electrical Connector Standard (with silver interface platings)Extended product range offers significant design and application versatilityUsed in high current to low energy circuits for electrical versatilityStrength and stability of terminals helps assure correct alignmentUtilizes internationally standard male blade sizes for design flexibilityConnector Position Assurance (CPA) and Terminal PositionAssurance (TPA) for superior connection reliabilitySealed version for excellent resistance to temperature, chemicals and abrasionTesting to SAEJ2030Typical ApplicationsMetri-Pack Connection Systems are suited for use in flat blade connections for electronic through high current applications.Performance AdvantagesWith an extended product range, Metri-Pack Connection Systems offer significant design and application versatility. Metri-Packs feature Terminal Position Assurance (TPA), Connector Position Assurance (CPA), serrated crimps and triple-rib peripheral seals. In addition, these field-proven systems provide exceptional performance, confirmed over many years on global applications.
