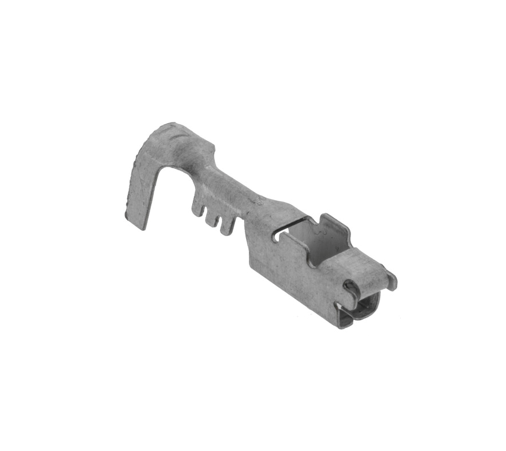

Contact-Terminal, Delphi-Aptiv, Socket, 12129409 Metri-Pack 280 Series Sealed Connector, Female Socket, Tangless, 16-14 AWG, 30 Amp Max | 428S-1614-TLManufacturer: Delphi-AptivOEM Part #: 12129409Category: Aptiv Metri-Pack 280 SeriesComponent Type: Socket, Female TerminalSize Wire-Gauge: 16-14Terminal Type: TanglessFits all sealed Metri-Pack 280 Series Female Connector BodiesHow does a tangless terminal vs. a tanged terminal work?Automotive Connectors TERM M/P 280 FEM DescriptionProduct AttributeManufacturerAptivCable Diameter / Insulation Range3.05 mm to 2.48 mmConnectorsAutomotive ConnectorsContact MaterialTin BrassContact PlatingTinContact TypeTerminalCurrent Rating30 AFamily - TerminalMetri-PackGenderReceptacle (Female)MaterialTinned BrassMaximum Operating Temperature 125 CMinimum Operating Temperature- 40 CMounting AngleStraightMounting StyleCable Mount / Free HangingPackagingReelProductTerminalsProduct TypeAutomotive ConnectorsSealed / UnsealedSealedSeriesMetri-Pack 280Termination StyleCrimpTradenameMetri-PackWire Gauge Range14 AWG to 17 AWG Aptiv-Delphi brand Metri-Pack sealed connectors are available in device and in-line connections for underhood vehicle applications. Metri-Pack 280 Series connectors can meet or exceed the requirements for most marine, appliance, and industrial control applications. Utilizes triple-rib peripheral silicone rubber seals.Metri-Pack 280 Series ApplicationsAgricultureMarineAutomotiveLarge Trucks, SemiDump TrucksEngine & Motor ApplicationsConstruction EquipmentOff-RoadUTV/ATV VehiclesMETRI-PACK 280 SERIESAvailable in device and in-line connections for vehicle applications, Metri-Pack 280 Series connectors can meet or exceed the requirements for most marine, appliance, and industrial control applications. Ideally suited for limited space applications that do not require environmental protection, Metri-Pack 280 Series products are extremely versatile.Available in device and in-line connections for under-hood vehicle applications, Metri-Pack 280 Series sealed connectors can meet or exceed the requirements for most marine, appliance, and industrial control applications. Utilizing triple-rib peripheral silicone rubber seals, Metri-Pack 280 Series sealed systems are ideally suited for critical, low-energy electronic applications that require protection from environmental hazards.280 Metri-Pack FeaturesConnector Position Assurance (CPA)Terminal Position Assurance (TPA)30 Amps continuous maximum current ratingSmall overall dimensionsLow energy, low voltage capabilityExcellent resistance to temperature, chemicals and abrasionStandard ISO 2.8mm configuration-40ºC to 125ºC temperature range280 Metri-Pack SpecsCABLE RANGE (mm2): ……. 0.35-5.0CURRENT RANGE (AMPS): …….. 0-30TEMP RANGE OC: ………. -40 to 125RESISTANCE: …… <10mW@20mVVOLTAGE DROP: …… <3.0mV/ampCENTERLINE SPACING (mm): ……. 5.0BLADE WIDTH (mm): …………….. 2.8METRI-PACK CONNECTION SYSTEMSDelphi Metri-Pack Connection Systems utilize internationally standardized male blade sizes, allowing for flexibility in design. Blade sizes range from 1.5 mm to 8 mm with current capability ranging from 14 to 60 amps. Metri-Pack Connectors are designed to be compatible with processing techniques such as automated pull-to-seat and push-to-seat assembly, dual-stage crimping, load cell crimp inspection and automated part identification and orientation. Delphi Metri-Pack Connector systems with silver interface platings pass the SAE® (Society of Automotive Engineers) J2030* Heavy-Duty Electrical Connector Standard.Ideal for low energy electronic circuits or power circuit applications, the Metri-Pack product line includes:High-performance interconnects in sealed or unsealed versionsCustom-engineered direct connections to motors, switches, sensors and other devicesEnvironmentally sealed electronic headers with current capacity of 14 amps, designed for service in severe environmentsJunction blocks and electrical centersBenefitsPass SAE J2030* Heavy-Duty Electrical Connector Standard (with silver interface platings)Extended product range offers significant design and application versatilityUsed in high current to low energy circuits for electrical versatilityStrength and stability of terminals helps assure correct alignmentUtilizes internationally standard male blade sizes for design flexibilityConnector Position Assurance (CPA) and Terminal PositionAssurance (TPA) for superior connection reliabilitySealed version for excellent resistance to temperature, chemicals and abrasionTesting to SAEJ2030Typical ApplicationsMetri-Pack Connection Systems are suited for use in flat blade connections for electronic through high current applications.Performance AdvantagesWith an extended product range, Metri-Pack Connection Systems offer significant design and application versatility. Metri-Packs feature Terminal Position Assurance (TPA), Connector Position Assurance (CPA), serrated crimps and triple-rib peripheral seals. In addition, these field-proven systems provide exceptional performance, confirmed over many years on global applications.
