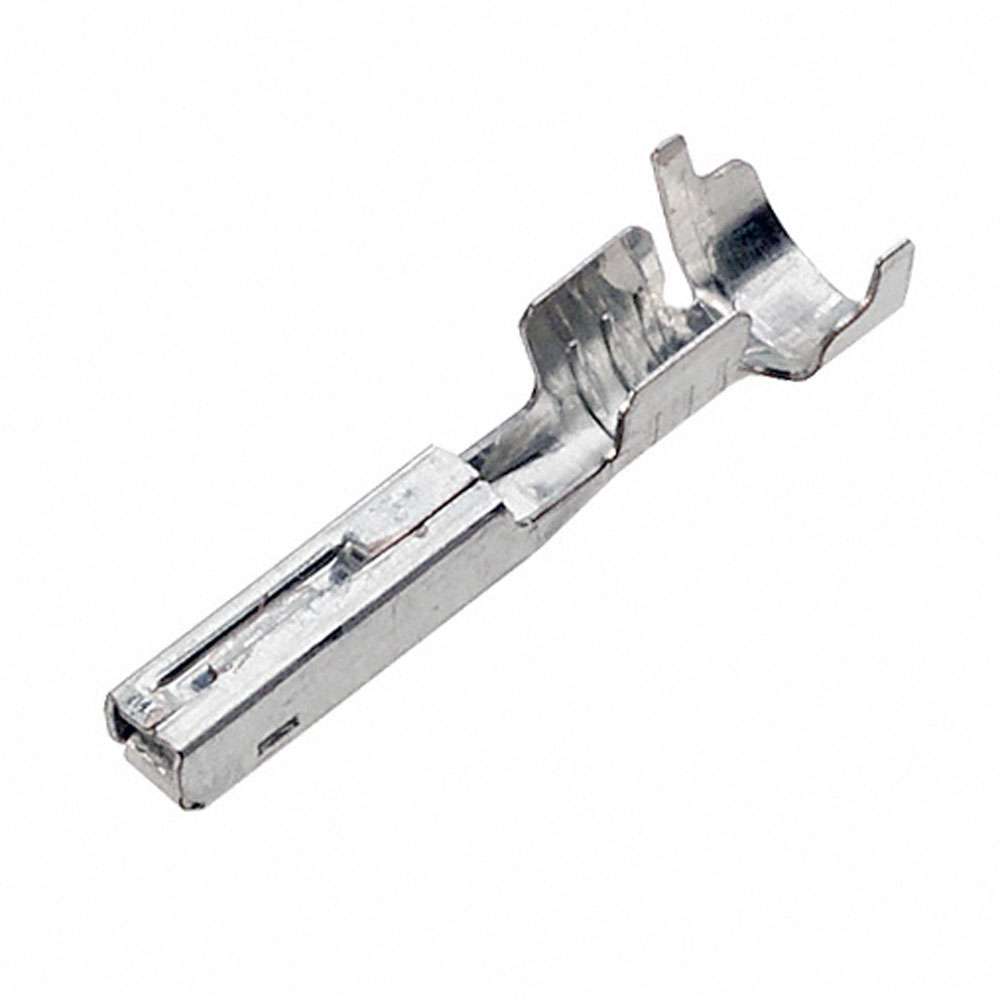

MX150L, Female Terminal, Socket 22-18awg, 19420-0010Category: MX150L Series ConnectorsManufacturer: MolexSeries: 19420Part Number: 19420-0010Product Family: MX150L ConnectorsGender: FemaleType: SocketMaterial – Plating Mating: TinWire Gauge: 22-18awgWire Insulation Diameter: 16Wire Gauge Max: 2.36-2.74mmTemperature Range – Operating: -40°C to 125°CIngress Protection (IP Rating): IP6K7Features:Superior performance under submersed water conditionsDesigned primarily for thin-walled SAE automotive style wireNo additional wire seals, wedge locks, or CPA locks are requiredTerminal position assurance components and the simple crimp, poke, and plug application eliminate the need for time-consuming and costly assemblyIP6K7-40°F (-40°C) to 257°F (125°C)Questions about this connector or any other Molex connector? Give us a shout and email us!
[email protected] Use with PartsDescriptionPart NumberMX150L Male Terminals and Circuit Voiding Keys19417DescriptionPart NumberMX150L Receptacle Housings19418 Features and Benefits of the MX150L FamilyThe MX150L Industrial Sealed Connector System is designed to meet the need for a rugged, environmentally sealed connector system supporting both low-level signal applications as well as power applications up to 40.0A, from marine to off-road construction equipment applications. The system is comprised of wire-to-wire, wire-to-panel, and wire-to-board configurations for industrial applications.*This product is NOT intended for automotive applications requiring compliance to standards such as USCAR-2, USCAR-25, GMW3191, AK Testing, J2030, Volvo Technology Requirements and Toyota Connector Spec (TCS).These innovative mat-sealed connectors are based upon the 1.50 and 2.50mm blade-type terminals. This design eliminates the need to purchase, handle and crimp individual wire seals to lower labor costs. The mat- seal design is a single silicone-based seal with individual wire openings and a seal cap to protect, securely retain and provide strain relief to the crimp assembly. The cost-effective connector features all-in-one plug and receptacle housings with pre-assembled mat and interfacial seals. Integral Terminal Position Assurance (TPA) and optional Connector Position Assurance (CPA) components ensure proper assembly and engagement. Completing the application is as simple as crimping the appropriate terminal, inserting the crimped terminal and engaging the TPA to its final locked position. No additional components are required. Tooling solutions include FineAdjust crimp press applicators for high-volume production, as well as hand tools for low-volume production and field repairs.
