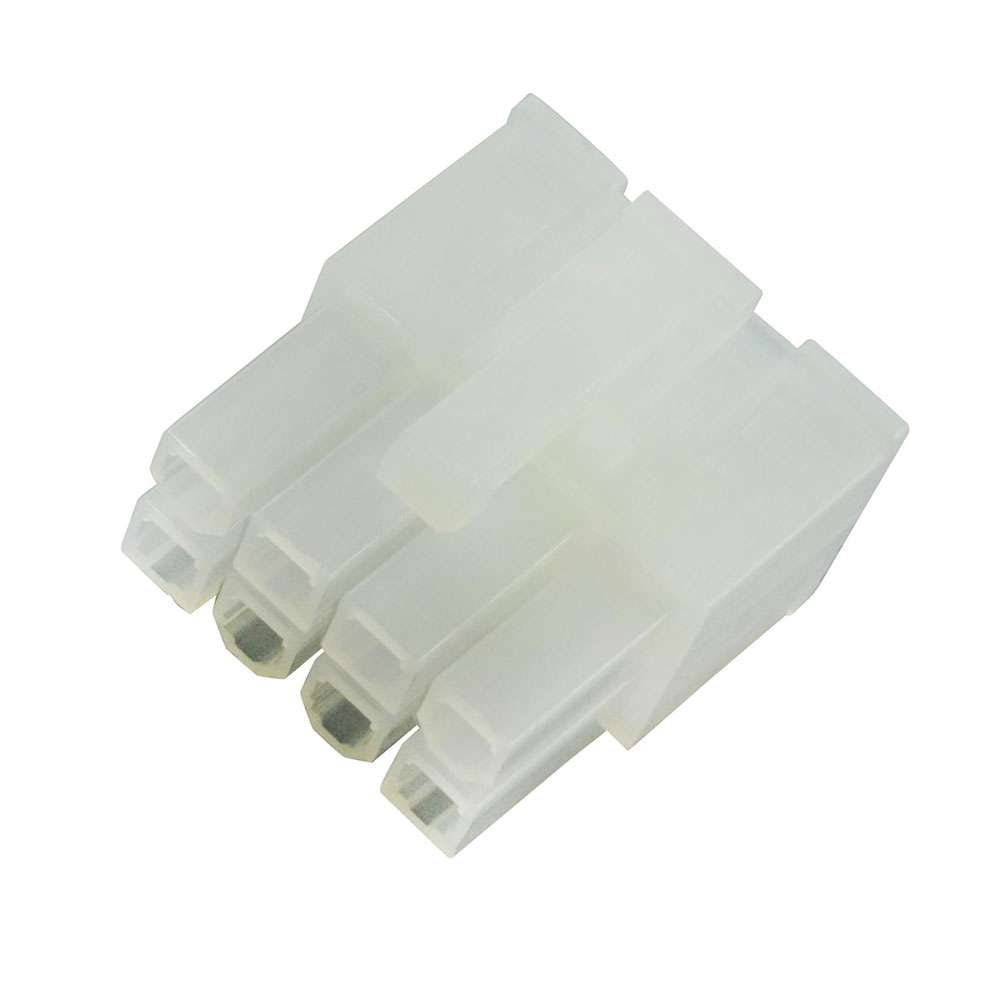

Mini-Fit Jr Series, 8 Way, Receptacle, Natural 39-01-2080Category: Molex Mini-Fit JR Series ConnectorsManufacturer: MolexSeries: 5557Part Number: 39-01-2080Product Family: Mini-Fit ConnectorsGender: ReceptacleType: SocketColor: Natural/WhiteCircuits: 8Rows: 2Temperature Range – Operating: -40° to 105°CFeatures:Superior performance under submersed water conditionsDesigned primarily for thin-walled SAE automotive style wireNo additional wire seals, wedge locks, or CPA locks are requiredTerminal position assurance components and the simple crimp, poke, and plug application eliminate the need for time-consuming and costly assemblyIP6K7-40°F (-40°C) to 257°F (125°C)Questions about this connector or any other Molex connector? Give us a shout and email us!
[email protected] Mates with Part(s)DescriptionPart NumberMini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 8 Circuits1727620008Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 8 Circuits, Panel Mount1727670008Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 8 Circuits, Panel Mount1727670108Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 8 Circuits, Old Panel Mount Style1727671008Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 8 Circuits, Old Panel Mount Style1727671108Mini-Fit BMI Right-Angle Dual Row Headers42404Mini-Fit BMI Vertical Dual Row Headers42440Mini-Fit BMI Right-Angle Dual Row Headers43810Mini-Fit BMI Vertical Dual Row Headers44068Mini-Fit Jr. Dual Row Test Plugs44281Mini-Fit Jr. Plug Housings5559Mini-Fit Jr. Vertical Headers5566Mini-Fit Jr. Right-Angle Headers5569Mini-Fit Jr. Dual Row Headers87427 Use with Part(s)DescriptionPart NumberPre-Crimped Lead Mini-Fit Female-to-Mini-Fit Female, Tin (Sn) Plating, 150.00mm Length, 18 AWG, Red797580001Pre-Crimped Lead Mini-Fit Female-to-Mini-Fit Female, Tin (Sn) Plating, 300.00mm Length, 18 AWG, Red797580009Mini-Fit Female Crimp Terminals5556Mini-Fit Plus Female Crimp Terminals45750Mini-Fit Jr. Hermaphroditic Backshells204723Mini-Fit HCS Female Crimp Terminals44476 Features and BenefitsA wide range of OEMs require high-current, high-density power connectors that also support design flexibility. To meet these needs, Mini-Fit Jr., Mini-Fit Plus, Mini-Fit Blind-Mate Interface (BMI) and Mini-Fit TPA2 Connectors offer polarized housings with isolated terminals, positive locks and low-engagement forces. All versions of Mini-Fit Jr. and Mini-Fit Plus Connectors are compatible with each other, including with Mini-Fit TPA2 and Mini-Fit BMI Components, bringing flexibility to the toughest design dilemmas.Customers with blind mate applications require connectors that make assembly easier, protect against mis-mating and prevent potential damage to terminals. Mini-Fit BMI Connectors allow misalignment and provide up to 2.54mm of float between mating surfaces for easy blind-mate connections. Furthermore, they feature flanges that help “gather” the mating receptacle for more accurate mating.Incorrectly assembled connectors can lead to terminal back-outs, causing end-product failure. The impact of terminal back-outs can result in liability costs to manufacturers and harm to individuals. Mini-Fit TPA2 Connectors prevent end-product failure by offering terminal position assurance (TPA), which reduces terminal back-out by providing locking redundancy. Mini-Fit TPA2 Receptacles are backward compatible with Mini-Fit Jr. Headers, eliminating the need for customers to make major revisions or investments in their applications.
