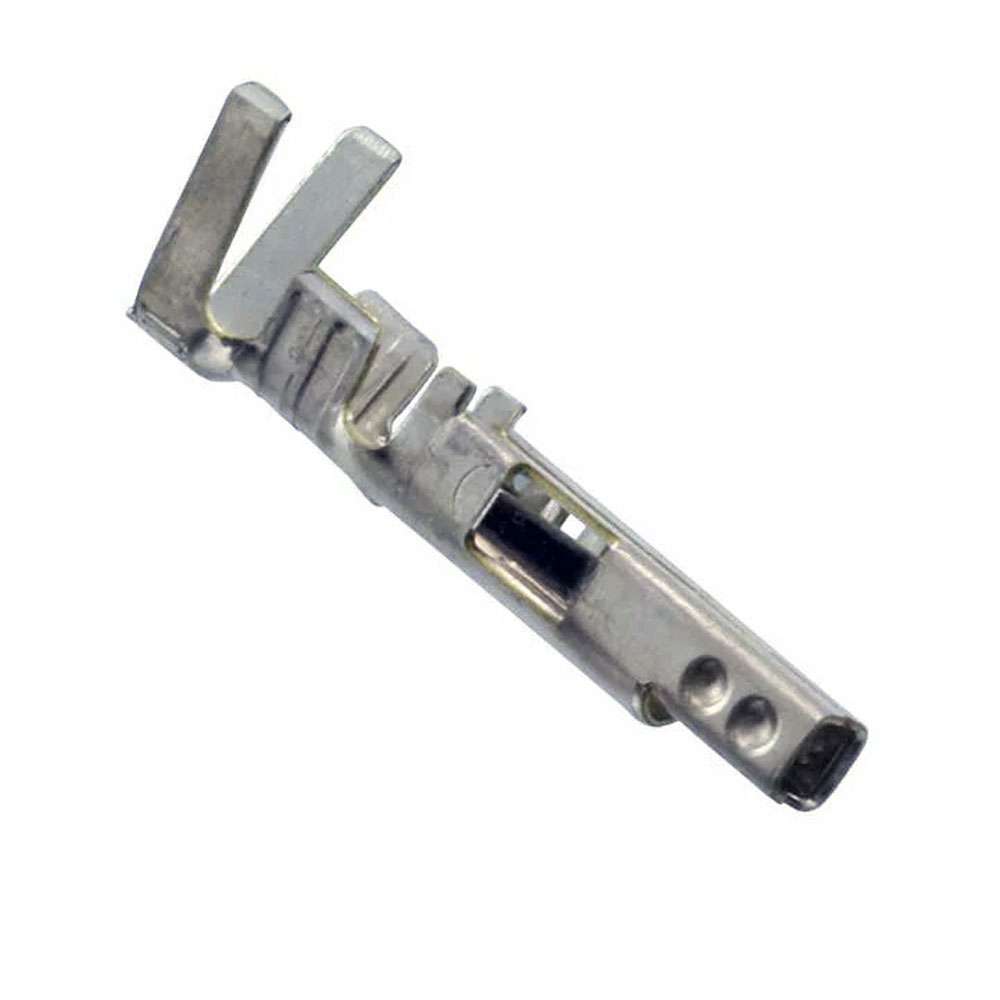

Mini-Fit Jr Series, Female Terminal Socket, 24-18awg, 39-00-0039Category: Molex Mini-Fit JR Series ConnectorsManufacturer: MolexSeries: 5556Part Number: 39-00-0039Product Family: Mini-Fit ConnectorsGender: FemaleType: SocketMaterial – Plating Mating: TinWire Gauge: 24-18awgWire Insulation Diameter: 1.30-3.10mmWire Gauge Max: 18awgFeatures:Superior performance under submersed water conditionsDesigned primarily for thin-walled SAE automotive style wireNo additional wire seals, wedge locks, or CPA locks are requiredTerminal position assurance components and the simple crimp, poke, and plug application eliminate the need for time-consuming and costly assemblyIP6K7-40°F (-40°C) to 257°F (125°C)Questions about this connector or any other Molex connector? Give us a shout and email us!
[email protected] Use with Parts DescriptionPart NumberMini-Fit Jr. Receptacle Housings5557Mini-Fit BMI Dual Row Receptacle Housings44516Mini-Fit BMI Dual Row Receptacle Housings42474Mini-Fit BMI Dual Row Receptacle Housings43760Mini-Fit Jr. Dual Row Receptacle Housings46992 Features and BenefitsA wide range of OEMs require high-current, high-density power connectors that also support design flexibility. To meet these needs, Mini-Fit Jr., Mini-Fit Plus, Mini-Fit Blind-Mate Interface (BMI) and Mini-Fit TPA2 Connectors offer polarized housings with isolated terminals, positive locks and low-engagement forces. All versions of Mini-Fit Jr. and Mini-Fit Plus Connectors are compatible with each other, including with Mini-Fit TPA2 and Mini-Fit BMI Components, bringing flexibility to the toughest design dilemmas.Customers with blind mate applications require connectors that make assembly easier, protect against mis-mating and prevent potential damage to terminals. Mini-Fit BMI Connectors allow misalignment and provide up to 2.54mm of float between mating surfaces for easy blind-mate connections. Furthermore, they feature flanges that help “gather” the mating receptacle for more accurate mating.Incorrectly assembled connectors can lead to terminal back-outs, causing end-product failure. The impact of terminal back-outs can result in liability costs to manufacturers and harm to individuals. Mini-Fit TPA2 Connectors prevent end-product failure by offering terminal position assurance (TPA), which reduces terminal back-out by providing locking redundancy. Mini-Fit TPA2 Receptacles are backward compatible with Mini-Fit Jr. Headers, eliminating the need for customers to make major revisions or investments in their applications.
