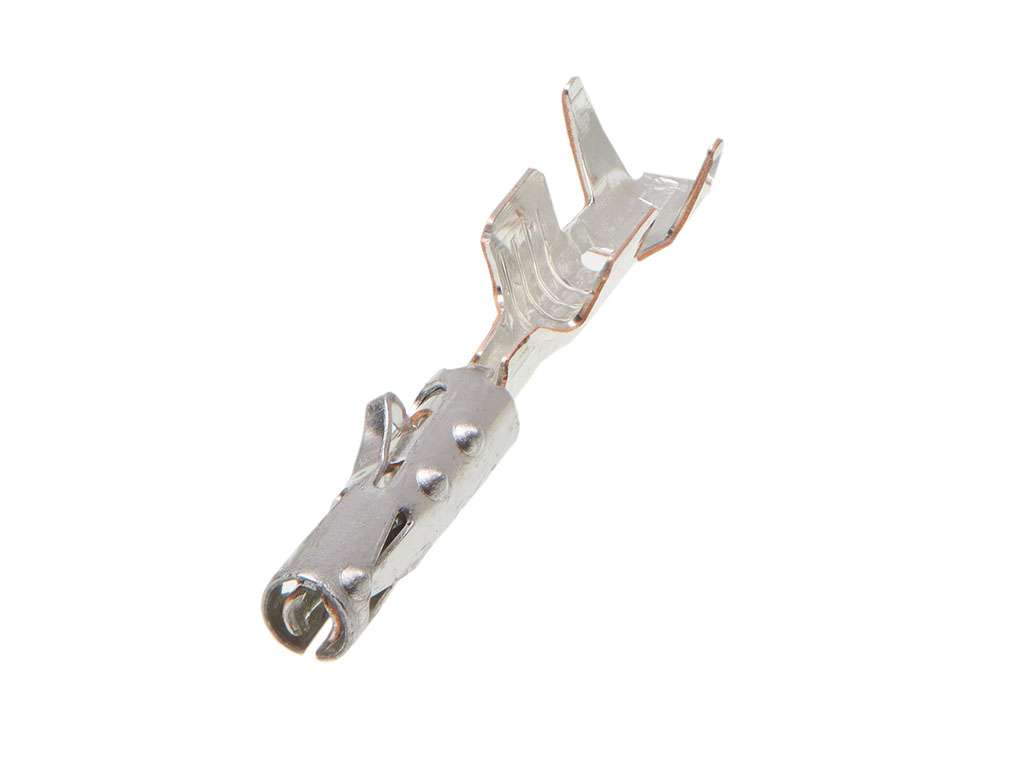

CMC Series Molex 16-14awg Tin Plated Female Socket. 64323-1039Female Terminal, SOCKET for 64320 Series Connectors, Including 48 Circuit Connector, 64320-3319Category: Molex ConnectorsType: CMC Series Terminal, Female Socket, 64323-1039Size: 16-14awgSeries: 64320Application: Automotive, Agriculture, Industrial, Wire to BoardColor: Silver/TinAmp Load/Current Max: 6.0AMaterial: High Copper AlloyPlating Material: TinTermination Interface: Crimp or CompressionWire Insulation Diameter: 2.10mm-2.80mmWire Size:mm²: >1.00-2.00Questions about this connector or any other Molex connector? Give us a shout and email us!
[email protected] DescriptionPart NumberPower CMC Receptacles64318CMC Receptacles and Wire Caps64319CMC Receptacles and Wire Caps64320CMC Receptacles and Wire Caps64321Features and BenefitsAs automotive OEMs build the vehicle of the future, they must address the increasing need for more controllers near the engine. The Molex CMC/CMX connector system can help OEMs transform their vehicle architectures and gain a competitive edge.This innovative family of products offers a wide range of sealed, high density, hybrid, wire-to-board and wire-to-wire off-the-shelf solutions designed to perform in harsh environments and in high-performance applications where currents are needed for up to 21.0A. CMC/CMX products are developed and validated according to the global automotive market’s strictest requirements.A sealed, modular, high-density, on-demand solutionThe CMC/CMX connector system offers a wide range of ready-to-use, cost-effective and validated solutions from one source. The wire-to-board and wire-to-wire sealed hybrid connector systems range from 22 to 154 circuit counts with signal, mid-power and power terminal sizes supplied for wire sections from 0.35 to 5.00mm² (ISO, TXL, FLRY types).Field-proven robustness and performanceThe vehicle of the future will face the same environmental challenges equal to or surpassing those of today – possibly even more severe. Our sealed IP6K7- and IP6K9K-rated products are specifically designed for harsh environments, such as temperatures ranging from -40° to 125°C and high vibration levels up to 25G with current ratings up to 21.0A.Reliable, secure connections and matingWith any engine type, but especially with EVs and other next-generation vehicles, reliability is essential. The connector and terminal position assurance features provide extra assurance for a reliable connection. The CMC/CMX product family was also designed to meet strict mating force requirements. The lever and polarization features prevent mis-mating, reduce operator fatigue and make assembly easier.
