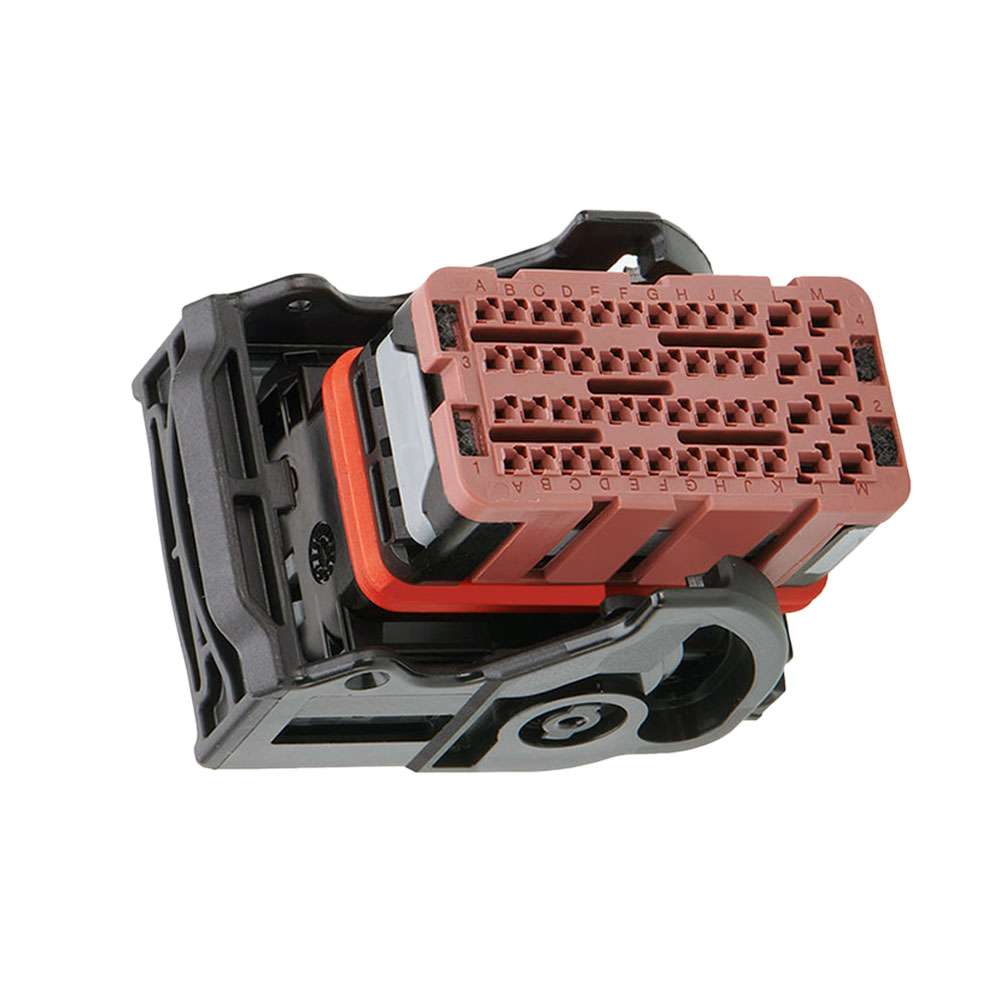

48 Circuit Molex CMC Receptacle Connector, Right Wire Output, Brown Coding48 Circuit CMC Molex Connector (Only) 64320 Series, Compatible with 64322-1029 Socket TerminalsCategory: Molex CMC Series ConnectorsManufacturer: MolexType: ConnectorCavity: 48Series: 64320, CMCApplication: Automotive, Agriculture, Industrial, Power, Wire to BoardColor: Black, Brown CodingNumber of Rows: 4Polarized Mating: YesPitch – Mating Interface: 2.54mm, 3.70mmTemperature Range – Operating: -40° to 125°CMore Detailed Tech Information – Sealed, high-density, modular connecting system for Power Train and Body Electronics applications in cars, trucks, bussesQuestions about this connector or any other Molex connector? Give us a shout and email us!
[email protected] Mates with PartsDescriptionPart NumberCMC Header 112-circuit, 3-pocket, Solder Tail643330100CMC Right-Angle Headers36638Use with PartsDescriptionPart NumberWire Cap for Mat Sealed CMC Receptacle, 28 Circuits and 48 Circuits643201301CMC 0.635mm Blind Cavity Plug643251010CMC 1.50mm Blind Cavity Plug6432510230.635mm CMC CP Female Terminals643221.50mm CMC CP Female Terminals64323 Features and BenefitsAs automotive OEMs build the vehicle of the future, they must address the increasing need for more controllers near the engine. The Molex CMC/CMX connector system can help OEMs transform their vehicle architectures and gain a competitive edge.This innovative family of products offers a wide range of sealed, high density, hybrid, wire-to-board and wire-to-wire off-the-shelf solutions designed to perform in harsh environments and in high-performance applications where currents are needed for up to 21.0A. CMC/CMX products are developed and validated according to the global automotive market’s strictest requirements.A sealed, modular, high-density, on-demand solutionThe CMC/CMX connector system offers a wide range of ready-to-use, cost-effective and validated solutions from one source. The wire-to-board and wire-to-wire sealed hybrid connector systems range from 22 to 154 circuit counts with signal, mid-power and power terminal sizes supplied for wire sections from 0.35 to 5.00mm² (ISO, TXL, FLRY types).Field-proven robustness and performanceThe vehicle of the future will face the same environmental challenges equal to or surpassing those of today – possibly even more severe. Our sealed IP6K7- and IP6K9K-rated products are specifically designed for harsh environments, such as temperatures ranging from -40° to 125°C and high vibration levels up to 25G with current ratings up to 21.0A.Reliable, secure connections and matingWith any engine type, but especially with EVs and other next-generation vehicles, reliability is essential. The connector and terminal position assurance features provide extra assurance for a reliable connection. The CMC/CMX product family was also designed to meet strict mating force requirements. The lever and polarization features prevent mis-mating, reduce operator fatigue and make assembly easier.
