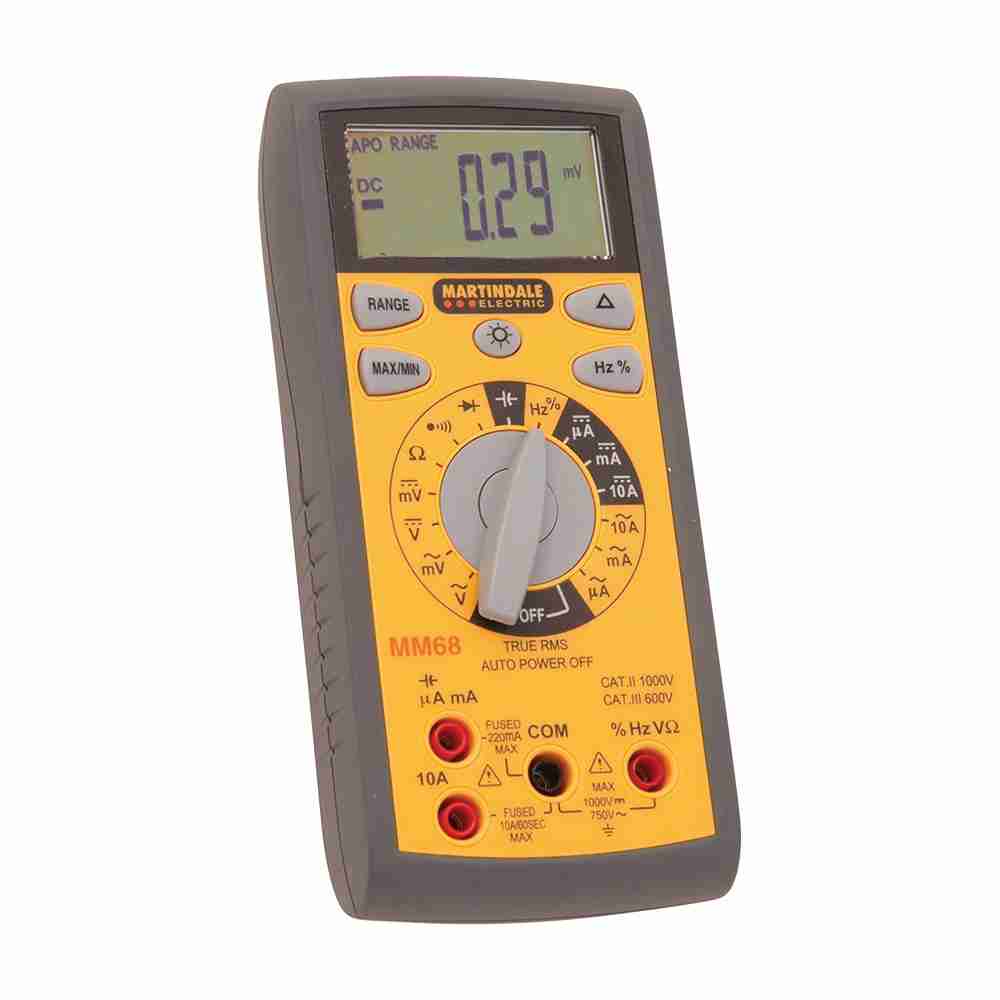

DescriptionIt measures frequency, capacitance, resistance, and also has duty cycle, diode test and an audible continuity test which sounds at less than 100Ω. The 4½ digit LCD screen displays the results as values and on a 22 segment analogue bar graph. The MM68 also has an auto-power off feature and on screen low battery indication.SpecificationsDisplay4½ digitVoltage AC0.01mV-750V (± 1.2% rdg ± 10 dgt)Voltage DC0.01mV-1000V (± 0.05% rdg ± 5 dgt)Current AC0.01µA-10A (±1.5% rdg ± 5 dgt)Current DC0.01µA-10A (±0.5% rdg ± 10)Resistance0.01Ω-220MΩ (± 0.5% rdg ± 10 dgt)Continuity<30Ω (audible indication)Frequency0.01Hz-22MHz (± 0.1% rdg ± 3 dgt)Capacitance1pF-22mF (± 3.0% rdg ± 5 dgt)FeaturesTrue RMS readings, duty cycle, continuity, diode testPollution degree2 for indoor useWeight285g approx.Dimensions165 x 78 x 42.5mmIncludesTL16 leads, 1 x spare fuse, 9V battery(installed) and manual
