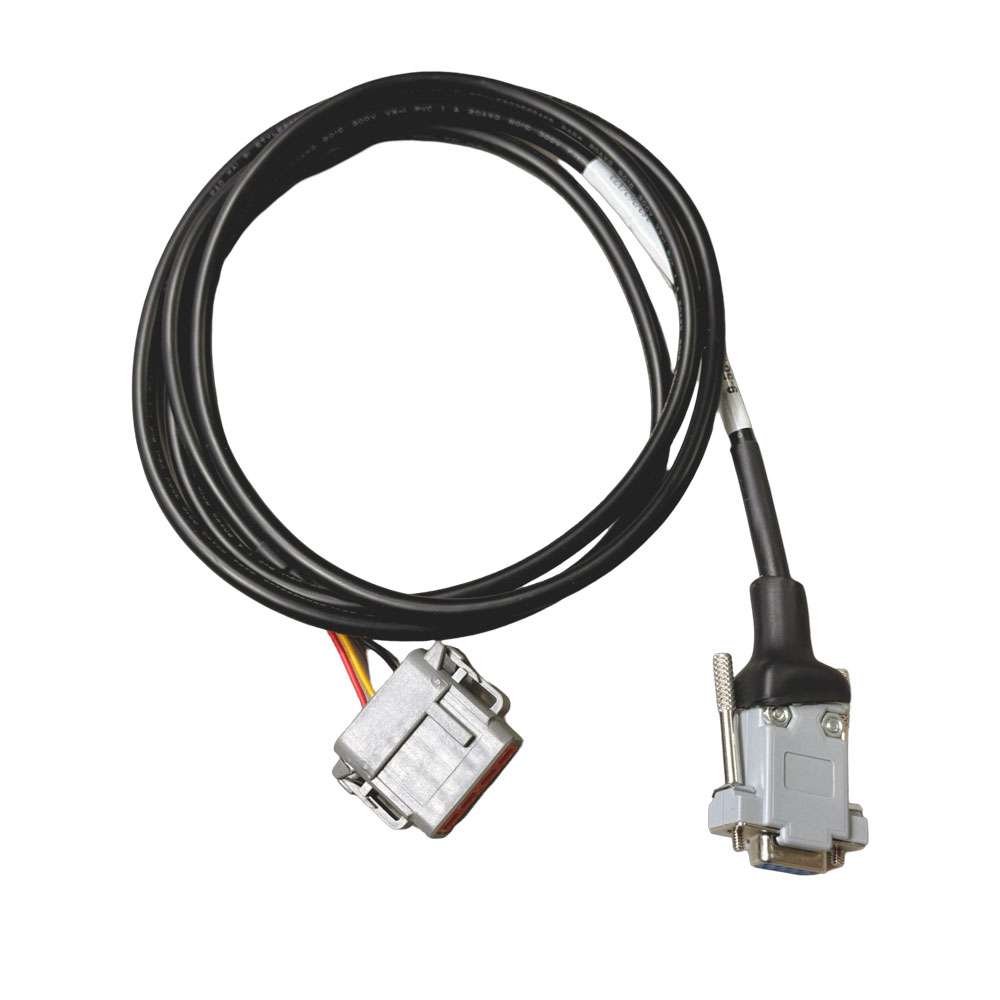

5′ NavController II GPS/NMEA Serial Output Adapter DB9F
$18.31
$27.65
5′ NAVII/Trimble GPS NMEA Out cable to DB9F Serial Cable, FemaleSimply connect to 12 Pin Deutsch plug from NAV diagnostic port from Trimble or CNH steering and plug into computer for programming or other NMEA output device.Null Modem Connector Needed (for Ag Leader and other applications)Female DB9 Serial ConnectorConvenient Thumb Screw ConnectionSPECIFICATIONS:Category: Trimble OEM Compatible CablesLength: 5 FeetConnector 1: Deutsch DTM (12 Way Plug)Connector 2: DB9F (Female Serial, with Thumb Screws)Power Supply: NoneCompatibility: TrimbleUse this adapter for connecting to the diagnostic port of a NavController II module harness on Case New Holland machines equipped with factory integrated steering for exporting GPS/NMEA serial data to a DB9F connection.12-pin DEUTSCH DTM plug connection to CNH NavController II (Male connector with female sockets)DB9F (Male connector with female sockets) connects to third-party application receiving dataSimilar to PN:AE3380150166Technical InformationConnectors: DTM06-12SADB9M Serial – FemalePin Out: Pin 2: YellowPin 3: RedPin 5: Black
