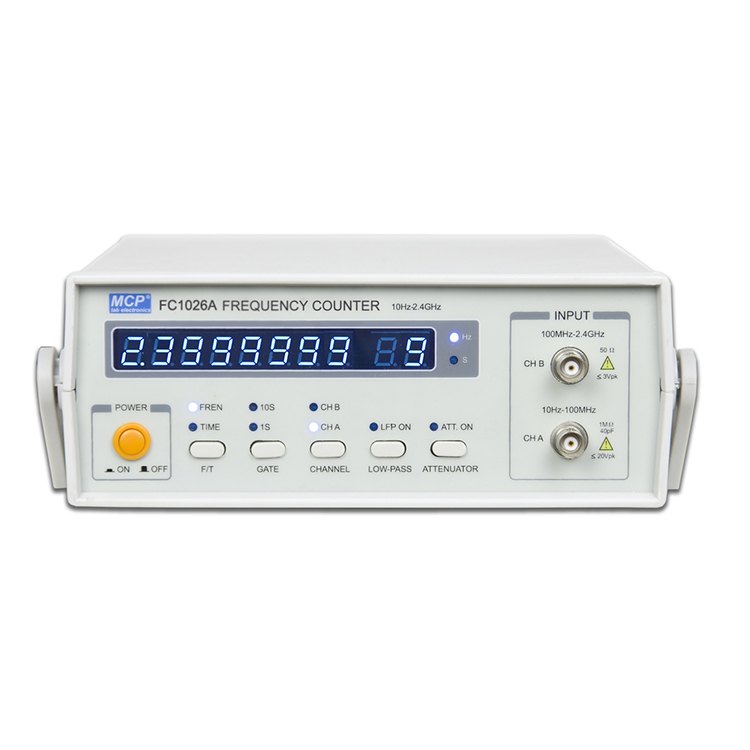

FEATURES : 8 digits LED display Measure range up to 2.4GHz (channel B) Low pass filter for low frequency measuring Two channels input SPECIFICATIONS : SPECIFICATIONS : Function measure frequency, period Measure frequency range 10Hz~100MHz (channel A) 100MHz~2.4GHz (channel B) Period range 100ns~1s (channel A) Sensitivity 35mV (1~20Hz) 20mV (20Hz~100MHz) 30mV (100MHz~2.4GHz) Max input voltage 250V (channel A), 1/20 attenuation 30mVrms~1Vrms (channel B) Input impedance 1MΩ (channel A) 50Ω (channel B) Channel A LPF -3dB bandwidth about 100kHz Channel A att. 1:20 Couple mode AC Measure error (1024A) ±1X10-6 (1026A) ±1X10-5 Gate time 1s, 10s Dimensions(WxHxD) 230 × 85 × 240mm Weight 1.5kg
