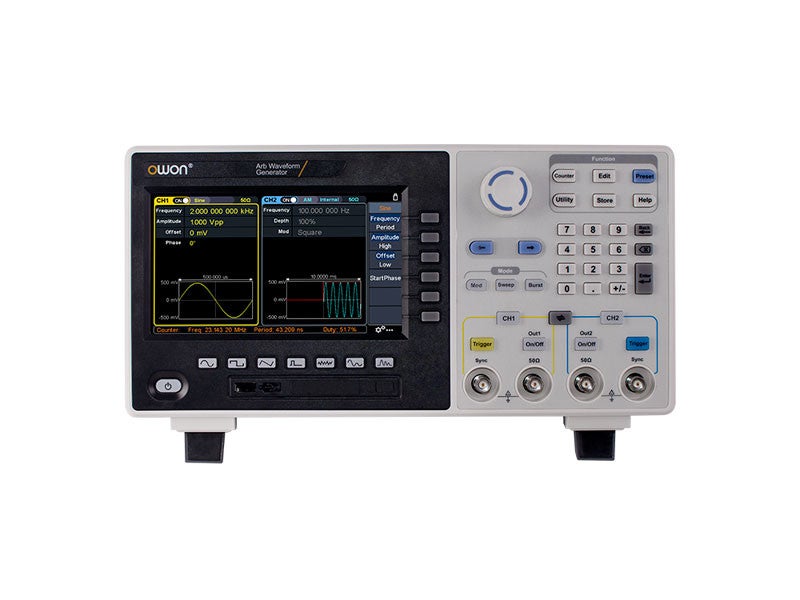

XDG2060 60MHz 2-CH Génerateur de Signaux arbitraires 60MHZ OWON

OWON XDG2060 60MHz waveform Generator Max 60MHz frequency output 500MSa/s Sample rate，Vertical resolution 1μHz 14 bits Vertical Resolution，10Marb waveform length Comprehensive waveform output : 6 basic waveforms,and 150 built-in arbitrary waveforms Comprehensive modulation functions : AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, Sweep, and Burst High-accuracy frequency counter integrated, supported range 100mHz – 200MHz SCPI, and LabVIEW supported 7 inch (800 × 480 pixels) multi-touch screen, support Model XDG2060 Channel 2 Frequency Output 60MHz Sample Rate 500MSa/s Vertical Resolution 14 bits Waveform Standard Waveform sine, square, pulse, ramp, noise, and harmonic Arbitrary Waveform exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform Frequency (resolution 1μHz) Sine 1μHz-100MHz Square 1μHz ~ 30MHz Pulse 1μHz ~ 25MHz Ramp 1μHz ~ 3MHz Noise (-3dB，typical) 100MHz Arbitrary Waveform 1μHz ~15MHz Harmonic 1μHz ~50MHz Accuracy ±2ppm, 25°C±5°C Waveform Length 2 points – 10M points Amplitude into 50Ω load 1mVpp ~ 10Vpp（≤ 25MHz）； 1mVpp ~ 5Vpp （≤60MHz）；1mVpp ~ 2.5Vpp（≤100MHz）； Modulation Type AM、DSB-AM、FM、PM、ASK、FSK、PSK、BPSK、QPSK、3FSK、4FSK、OSK、PWM、SUM Frequency Counter Function Frequency， period, width, -width, duty, and -duty Frequency Range 100mHz ~ 200MHz Frequency Resolution 7 digits Input / Output Input mode frequency counter, external modulation input,external trigger input,Internal clock output,external reference clock input / output Communication Interface USB Host, USB Device,LAN，RS232(optional) Mechanical specifications Size 340mm x 177mm x 90mm Weight 2.3kg Accessories Included: 1 x XDG2060 1 x Power Cord 1 x CD Rom 1 x Quick start guide 1 x USB Cable 1 x BNC -BNC Cable
