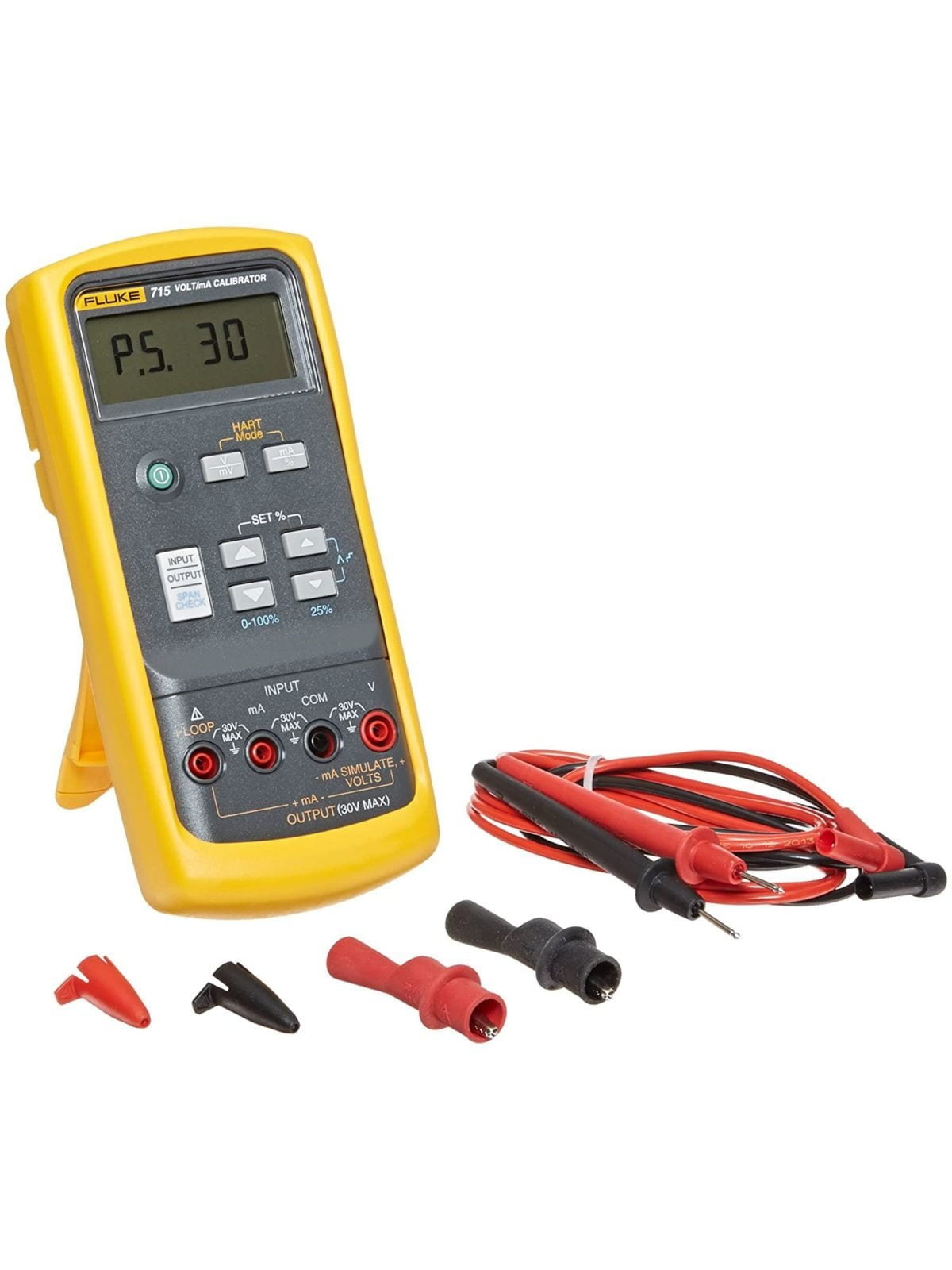

FLUKE715 CALIBRATEUR DE BOUCLE TENSION 0-20mA & 4-20mA

The Fluke 715 Volt mA Calibrator delivers outstanding performance, durability, and reliability in a compact, lightweight tool. Offered in the rugged Fluke 80 Series digital multimeter package, the calibrator measures loop current as well as voltage output. It sources voltage to 200 mV or 20 V, measures loop current (0-20 mA, 4-20 mA) signals with 0 .01 % accuracy, and 1 µA resolution, and measures voltage output process signals from PLCs and transmitters. It can source or simulate 4-20 mA loop current and provides a 24 V loop supply with simultaneous current measurement. FEATURES : Compact mA calibrator for measuring 0-20 mA or 4-20 mA signals High accuracy—0.01% and 1 µA resolution Measures voltage output process signals from PLCs and transmitters Sources or simulates 4-20 mA loop current Sources voltage to 100 mV or 10 V Specifications: Fluke 715 Volt/mA Loop Calibrator Functional Specifications Measure / Source mV Range 0 to 200 mV Resolution 0.01 mV Accuracy 0.015% 2 counts Measure / Source V Range 0 to 20 V Resolution 0.001 V Accuracy 0.01% 2 counts Measure / Source/ Simulate mA (% of span) Range 0 to 24 mA (-25% to 125%) Resolution 0.001 mA Accuracy 0.01% 2 counts Sink (simulate transmitter) display mA or % of span Specifications Loop power Range 24 V DC Accuracy ±10% Drive; 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for battery 5.8 to 6.8 V Display Clear 5 digit LCD Environmental Specifications Operating temperature -10°C to 55°C Storage temperature -40°C to 60°C Humidity (without condensation) 95% (10°C to 30°C) 75% (30°C to 40°C) 45% (40°C to 50°C) 35% (50°C to 55°C) Operating altitude 3,000 m max Safety Specifications Safety CSA C22.2 No. 1010.1:1992 Mechanical and General Specifications Size (L x W x D) 187 x 87 x 32 mm (7.93 x 3.86 x 2.06 in) Weight Approx. 330 g (21 oz) Warranty 3 years Shock and vibration Random, 2 G, 5-500 Hz 1 m drop test Battery type Single 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
