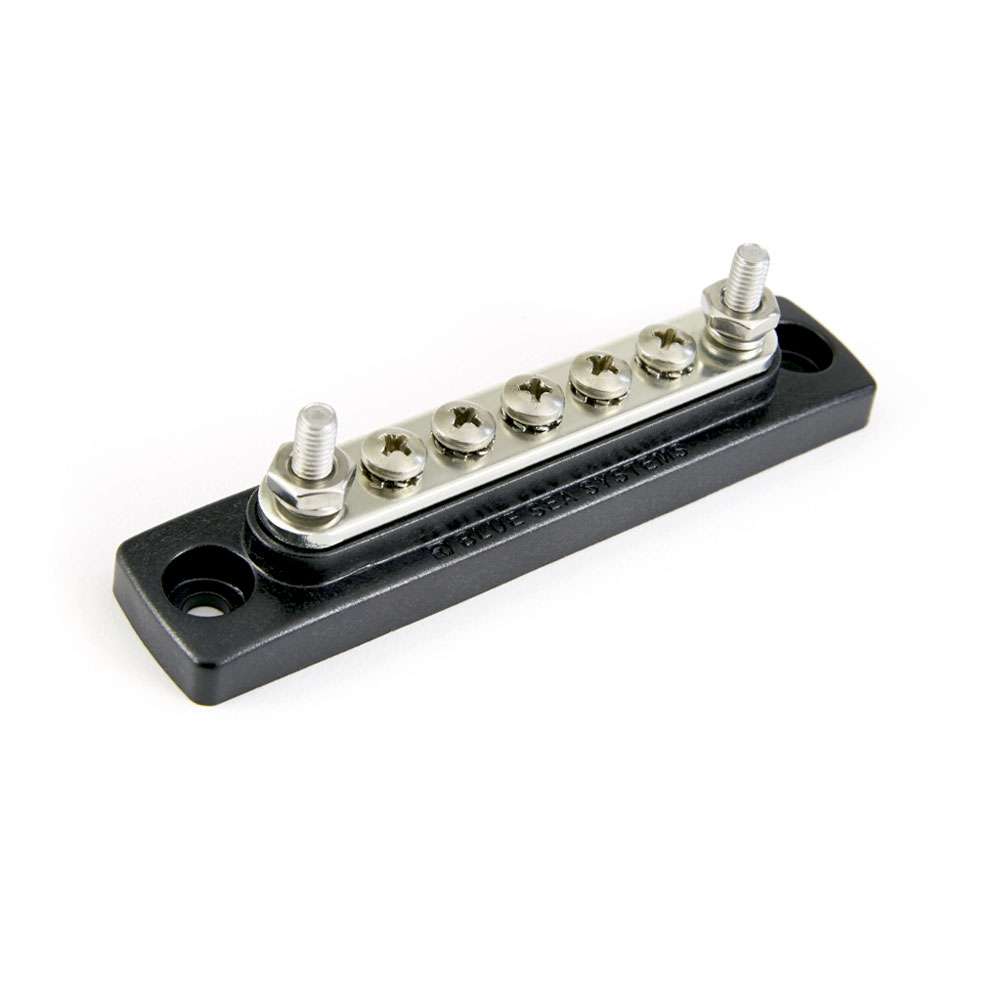

Blue Sea Systems 2304 Mini Busbar, 5 Gang Ground Chassis, 100a, #10-32 ScrewsUsing a Mini-Busbar can come in real handy when trying to clean up an install or when wiring up a complicated project on your old truck, Jeep, Semi-Truck, Side-By-Side or whatever! The 5 Gang Mini Busbar by Blue Sea is a perfect addition to these types of projects!SpecificationsMaximum Voltage: 300V AC/48V DCNumber of Screw Terminals: 5Number of Terminal Studs: 2Terminal Type: #10-32 Stud, #8-32 ScrewContinuous Rating: 100ABase Material: UL 94-V0 Rated, Glass Reinforced ThermoplasticsBus Material: Tin-Plated Copper CDA 110/ UNS11000Screw Terminal Torque: 15 in-lb (1.69 Nm)Stud Torque: 18 in-lb (2.03 Nm)Weight: 0.15lbHave more questions about junction blocks, busbars or fuse blocks? Shoot us an email:
[email protected] a secure and correct connectionBlue Sea Systems is now shipping product with serrated flange nuts which replace the more traditional nut and split washer. The one-piece serrated flange nut ensures correct and secure wire termination.Large base requires a greater amount of torque to loosen than to tighten the nutEnlarged circular base distributes heavy pressure equally in order to assure a secure holdApplication Steps Which Improve Busbar PerformanceOptimize Current Flow: the performance of a busbar can be increased by attaching the primary feed wire to the center of the busbar. The performance can be further increased by first attaching the primary feed wire followed by the highest load wire to the same terminal. This will allow the current to be carried by the large cables and avoid sending all of the current through the busbar. Although this will improve the performance of the busbar, it does not change the actual ampacity rating of the busbar and should not be used when comparing one busbar to another.Increase Voltage Capacity: Most busbars have both an amperage and voltage rating. Higher voltage can be achieved by:Increasing the creepage distance, which is the distance from a busbar mounting fastener to a grounded surface like a firewall. Creepage distance directly impacts the voltage rating of the busbar. Insulating the base and using insulating fasteners rather than conductive fasteners will significantly increase the safe operating voltage of a bus bar. The insulating system including the creepage distance has to prevent failure in the event of transients and surges in voltage.Managing the buildup of corrosion will significantly improve the safety and service life of a busbar. No exposed busbar can be expected to operate safely with a live connection in a wet location. An exception would be busbars used for lightening protection and grounding systems.
