Bolt Down MEGA Fuse Holder, 500A Bolt Down, Littelfuse 02981001ZXT

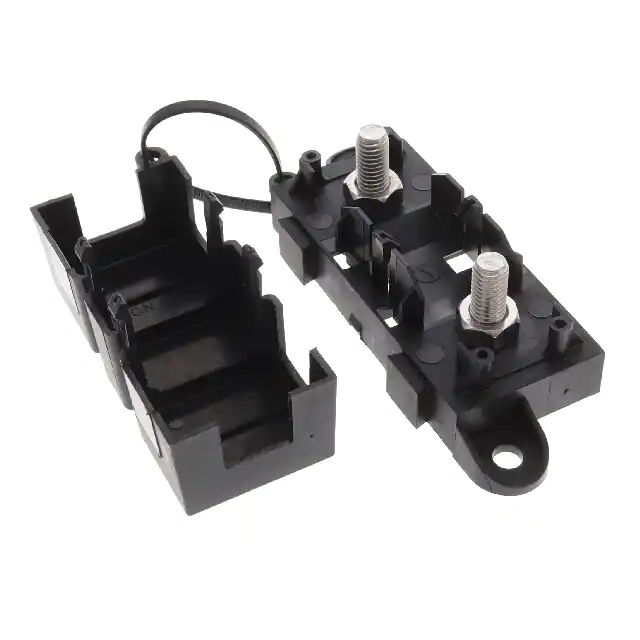

Littelfuse MEGA Fuse Holder, 500A Bolt Down, 32V, Black, each, 02981001ZXTDescriptionThe Littelfuse MEGA® 298 Bolt-Down Series High-Current Fuse Holder works with MEGA® bolt-down fuses. As a high-amp fuse holder, it’s ideal for battery and alternator connections as well as providing ultra-high current protection for other types of  heavy gauge cables.  Interlocking pins on the sides let you connect additional MEGA® 298 Bolt-Down Series fuse holders for multi-fuse applications.The MEGA® 298 Bolt-Down Series fuse holder is offered in a wide variety of configurations. Base style options include one with M6 mounting holes and one with extended M6 mounting slots measuring 15mm long. Additionally, there are configurations available with and without fuses. The UL 94 rated cover included with each fuse holder.Download Product DatasheetSpecificationsAgency Approval – Shock: VS-005002/VS-005005 Agency Approval – Vibration: VS-005002/VS-005005 Current Rating Max: 500 Amps, 400 Amps Fuse Type: MEGA (298) Humidity: 97%±3% relative humidity at 40°C±3C for 16 hrs Ignition Protection: V-2 Ignition–Proof: UL- 94 Ingress Protection: Dust Protection Ingress Rating: VS-005002/VS-005005 Input Terminals: M8 Stud, M6 Stud Mounting Method: Bolt-Down, M6 Slots / M6 Mounting Holes Output Terminals: M8 Stud, M6 Stud Recommended Torque: 8mm Hex Nut: 12-18 Nm (106-159 IN-LBS) 6mm Hex Nut: 8-14 Nm (71-124 IN-LBS) Max Voltage Rating: 32V DC, 72V DCApplicationsBattery and Alternator ConnectionsHigh-Current Circuit ProtectionBody BuildersMedium-Duty VehiclesFeatures And BenefitsCompatible with MEGA® bolt-down fusesGlass-filled thermoplastic body houses M8 or M6 input and output terminalsInterlocking pins on the sides of the fuse holder let you connect additional MEGA® 298 Bolt-Down Series fuse holders to create a multi-fuse blockBase styles available with M6 mounting holes or extended M6 x 15mm slotsIncluded UL 94 rated protective cover has 6 available locations for openings to accommodate various cable entry needs (actual openings vary by part number)Configurations may also include a thermoplastic tether, insulators, ratchet fasteners and/or mounting hardware
