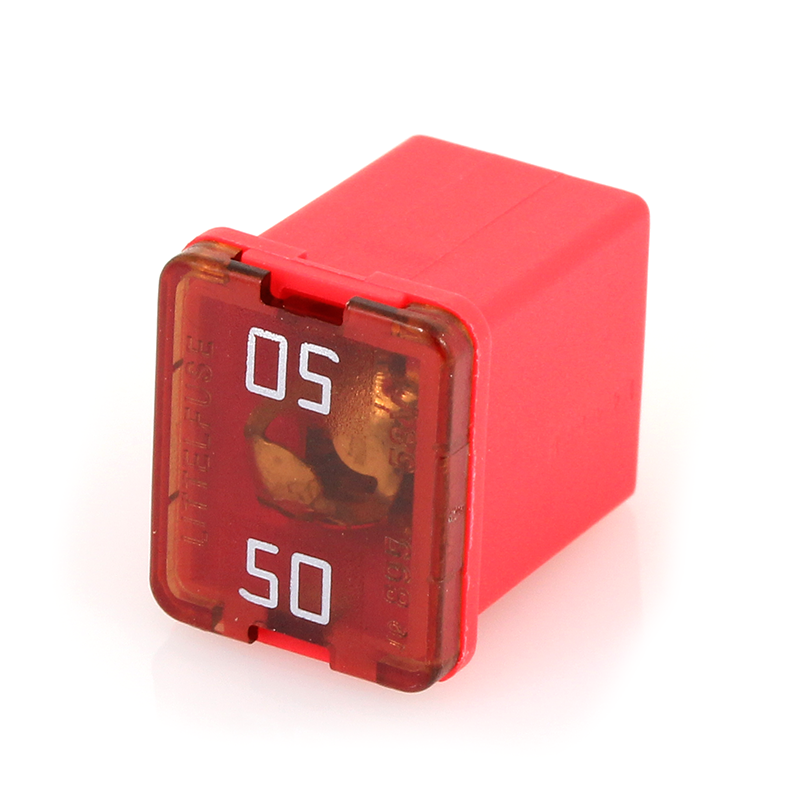

Littelfuse 0895050.Z Low Profile JCASE Cartridge Style Time Delay Fuse, 50A, 58V, Red

Littelfuse Low Profile Jcase Fuse, Cartridge Style, 50A, 58V, Red, 0895050.ZLow Profile JCASE® Cartridge Fuses Rated 58VCurrent Rating 50ASeries JCASE SeriesNominal Voltage 58VColor RedJCASE® Cartridge Fuses Rated 32VThe JCASE® is a cartridge style fuse with female terminal design. JCASE® provides both increased time delay and low voltage drop to protect high current circuits. JCASE® has the ability to handle inrush currents.SpecificationsVoltage Rating: 32 VDC Interrupting Rating: 1000A @ 32 VDC Operating Temperature Range: -40˚C to 125˚C Housing Material: PA66-GF13 (U.L. 94 Flammability rating – HB) Housing Material (60A): PA66-GF13 (U.L. 94 Flammability rating – HB) Cover Material: PSU (U.L. 94 Flammability rating – HB) New Weight Per Fuse: 2.4g ±10% Insertion Force: 53N max. (12 lb.) Extraction Force: 9N Min (2 lb.) Complies with: SAE 2741 and ISO 8820-4 except for the life test – LF specification is 100-hours at 100% of rated currentLittelfuse® Product Datasheet Download Center
