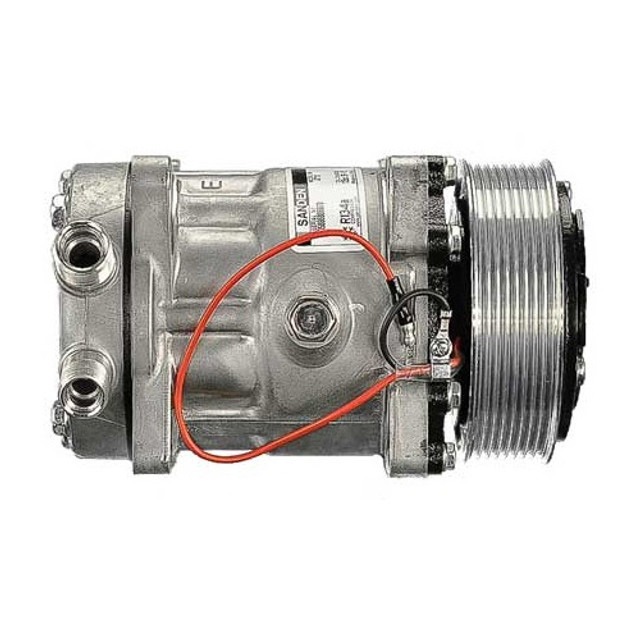

Description Peterbilt Sanden Compressor Replaces OEM: 18-04081 Fitting Size: 3/4×7/8 Wire End: T1 Model: SD7H15 Application: Multi Fit Applications Volts: 12V Other OE Sanden #: 8103 Clutch Diameter: 119mm No. of Grooves: 8 groove Belt Type: Serpentine No. Comp. Cylinders: 7 cyl Comp. Displacement (ci): 9.5 cu.in. Factory Oil Charge: 135cc Oil Fitting Port Position: Vertical Fitting Style: Male Insert O-Ring #8 & #10 Head Type: JD Wire Type: 1 Wire Male Bullet Replacement Clutch Assy.: 5068 Replacement Head Assy: 5626 Mounting Type: Ear 8 Long Oil Type: PAG100 Product Name: Compressor Refrigerant Type: R134a Rotation: CW O-Ring #1: 0013 O-Ring #2: 0015 Shaft Type: Long Key Shaft Notes: OE coil has diode Diode Protection: None DO NOT POWER PROBE THE COMPRESSOR CLUTCH. YOU WILL BLOW OUT THE DIODE AND THEN THE CLUTCH WON’T WORK AND THE WARRANTY WILL BE VOID A/C COMPRESSOR
